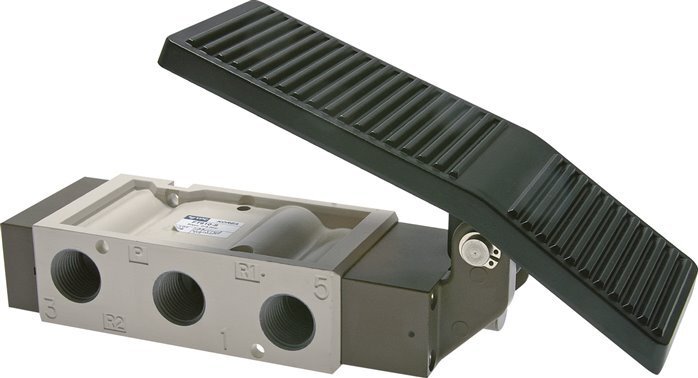

5/3 G1/2'' Exhaust Center Foot Pedal Valve 0-8bar/0-112psi

5/3 G1/2'' Exhaust Center Foot Pedal Valve 0-8bar/0-112psi
5/3 G1/2'' Exhaust Center Foot Pedal Valve 0-8bar/0-112psi
5/3 G1/2'' Exhaust Center Foot Pedal Valve 0-8bar/0-112psi
5/3 G1/2'' Exhaust Center Foot Pedal Valve 0-8bar/0-112psi
Image may vary slightly
See specifications for accurate information.
Reference: V2Q5H
Brand: Tameson

If you need to release air pressure when an application stops, choose a 5/3-way valve with an exhaust center. Due to the exhaust center, these valves block air from being trapped in cylinders when stopped. As an example, if clamped material needs to be removed manually, the valve needs to relieve air pressure when it is off. With spring return actuators, the valves return to their original position as soon as the actuator is released. Pneumatic foot pedal valves are often used to operate pneumatic cylinders.

View all
$153.53
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

If you need to release air pressure when an application stops, choose a 5/3-way valve with an exhaust center. Due to the exhaust center, these valves block air from being trapped in cylinders when stopped. As an example, if clamped material needs to be removed manually, the valve needs to relieve air pressure when it is off. With spring return actuators, the valves return to their original position as soon as the actuator is released. Pneumatic foot pedal valves are often used to operate pneumatic cylinders.

Downloads

YPC FT
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/2 inch
Connection type
Inner thread cylindrical BSPP-G

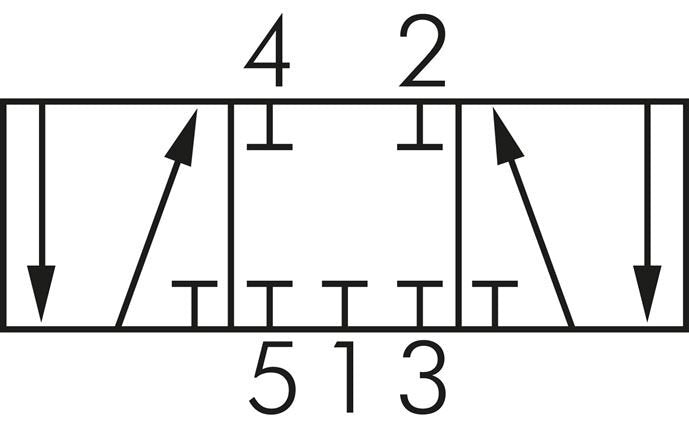

Function
Circuit function of the valve
Exhaust center
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
5/3 way
Max pressure (bar)
Maximum system pressure.
8
Min pressure difference (bar)
0
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
4.47
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
60
Max flow rate (l/min)
5000
Actuator style
The style of the actuator for manually or mechanically actuated valves.
Foot pedal
Return actuation
The return actuation is how the valve goes back to its original position.
Spring return
Model
YPC FT
Max pressure (bar)
8
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Manual
