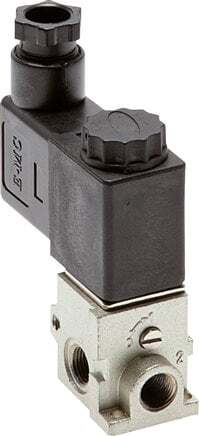

3/2 G1/8'' NC Solenoid Valve 230V AC 0-8bar/0-112psi E.MC

Notice: This product is discontinued

Discontinued
3/2 G1/8'' NC Solenoid Valve 230V AC 0-8bar/0-112psi E.MC
3/2 G1/8'' NC Solenoid Valve 230V AC 0-8bar/0-112psi E.MC
3/2 G1/8'' NC Solenoid Valve 230V AC 0-8bar/0-112psi E.MC
3/2 G1/8'' NC Solenoid Valve 230V AC 0-8bar/0-112psi E.MC
Image may vary slightly
See specifications for accurate information.
Reference: V2P3T
Brand: Emc
Mfr. Part: VP321-E2

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position.

Including coil and connector.

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position.

Downloads

E.MC VP321
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/8 inch
Connection type
Inner thread cylindrical BSPP-G
Function
Circuit function of the valve
Normally closed
Voltage
Choose the voltage required to operate the valve. AC stands for alternating current, DC for direct current.
230 V AC
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Zinc die-cast
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Min pressure difference (bar)
0
Max pressure (bar)
Maximum system pressure.
8
Valve bore (mm)
1.2
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
0.04
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-5
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
60
Electrical connection
DIN-BI (11mm)
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP65
Nominal power (VA)
5
Max flow rate (l/min)
50

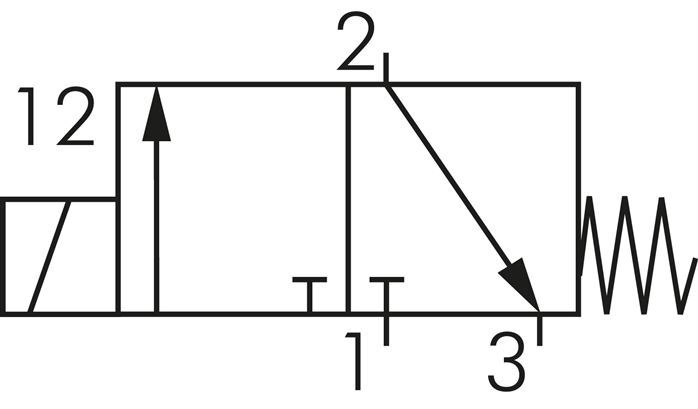

Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
3/2 way
Response time
50s
Model
E.MC VP321
Voltage-type
AC
Max pressure (bar)
8
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Electric
