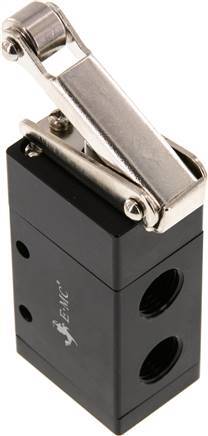

3/2 G1/4'' Universal Roller Lever Valve 0-8bar/0-112psi E.MC

3/2 G1/4'' Universal Roller Lever Valve 0-8bar/0-112psi E.MC
3/2 G1/4'' Universal Roller Lever Valve 0-8bar/0-112psi E.MC
3/2 G1/4'' Universal Roller Lever Valve 0-8bar/0-112psi E.MC
3/2 G1/4'' Universal Roller Lever Valve 0-8bar/0-112psi E.MC
Image may vary slightly
See specifications for accurate information.
Reference: V2P3S
Brand: Emc
Mfr. Part: M322-S2

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position. The pneumatic roller valve senses the location of moving parts mechanically within machine automation systems. The valve is activated when a moving part passes over it.

View all
$33.15
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 55 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position. The pneumatic roller valve senses the location of moving parts mechanically within machine automation systems. The valve is activated when a moving part passes over it.

Downloads

E.MC M
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/4 inch
Connection type
Inner thread cylindrical BSPP-G
Function

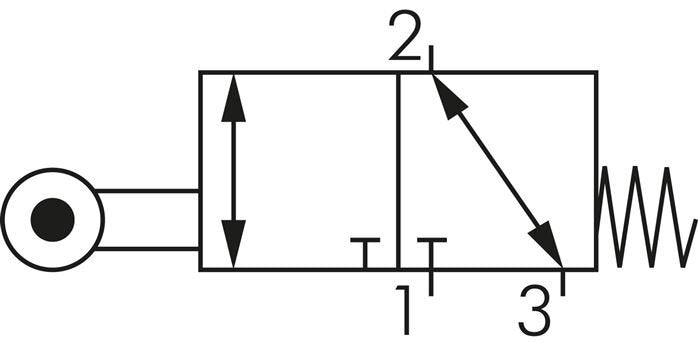

Circuit function of the valve
Universal
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Min pressure difference (bar)
0
Max pressure (bar)
Maximum system pressure.
8
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
0.72
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-5
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
60
Max flow rate (l/min)
800
Actuator style
The style of the actuator for manually or mechanically actuated valves.
Roller lever
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
3/2 way
Model
E.MC M
Max pressure (bar)
8
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Manual
