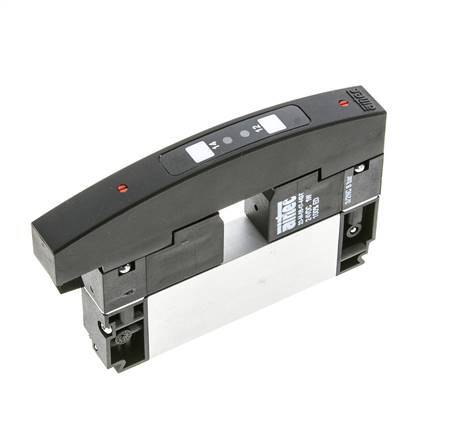

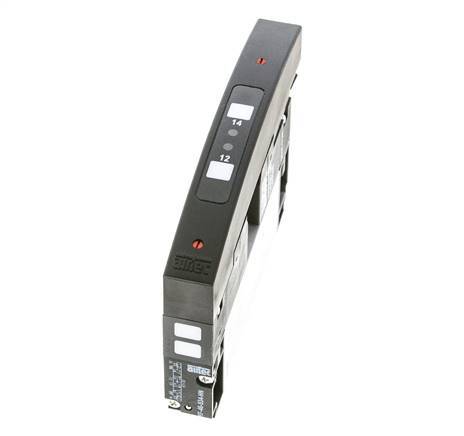

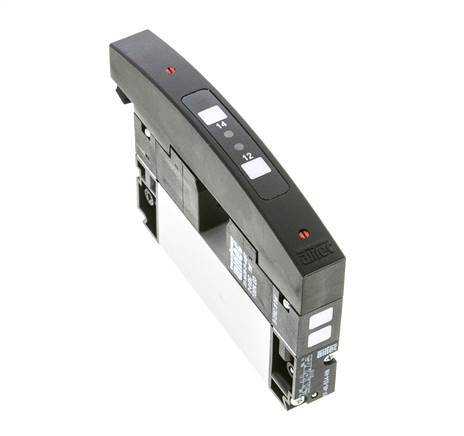

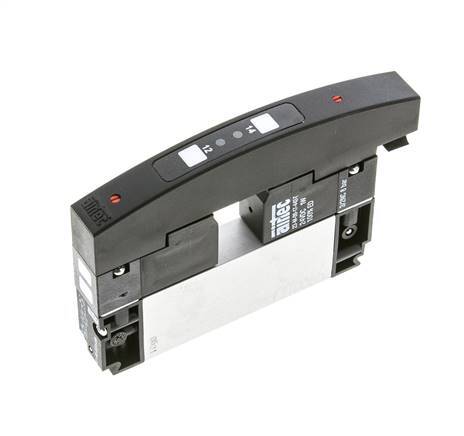

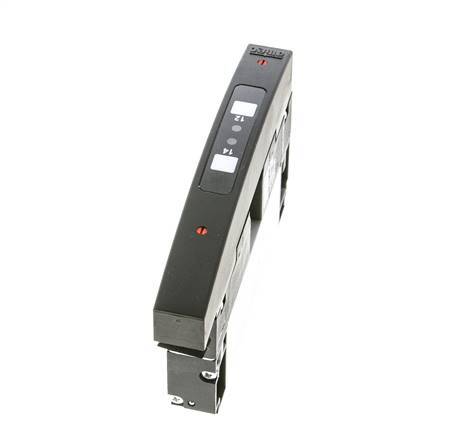

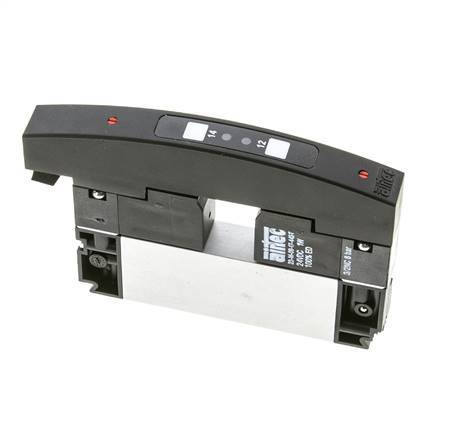

Image may vary slightly
See specifications for accurate information.
Reference: V2NWH
Brand: Airtec
Mfr. Part: KF-46-534-HN-S12

For applications requiring two simultaneous actions, choose a 5/3-way with a pressure center valve. An example is extending two cylinders at once so that material can be secured between them.

View all
$135.31
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

For applications requiring two simultaneous actions, choose a 5/3-way with a pressure center valve. An example is extending two cylinders at once so that material can be secured between them.

Downloads

Airtec RE46
pdf
Download

Specifications

Connection type
Flange
Function
Circuit function of the valve
Pressure center
Voltage
Choose the voltage required to operate the valve. AC stands for alternating current, DC for direct current.
24 V DC
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
5/3 way
Max pressure (bar)
Maximum system pressure.
8
Min pressure difference (bar)
3
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
0.61
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
50
Nominal power (VA)
1.3
Max flow rate (l/min)
680
Number of stations
The number of valves that can be mounted on the valve terminal.
1
Model
Airtec RE 46
Voltage-type
DC
Max pressure (bar)
8
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Electric
