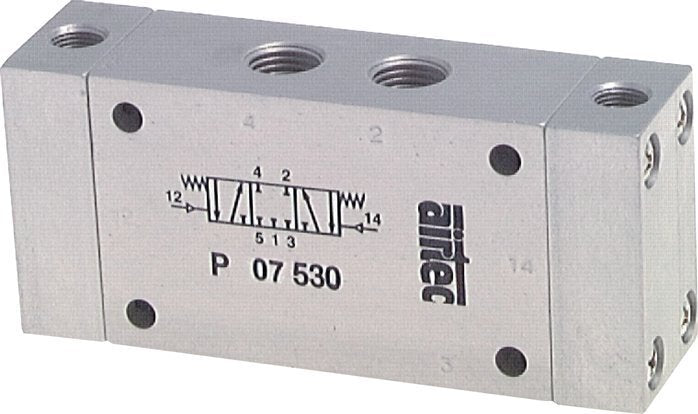

5/3 G1/8'' Exhaust Center Air Pilot Valve ATEX 0-8bar/0-112psi Airtec

5/3 G1/8'' Exhaust Center Air Pilot Valve ATEX 0-8bar/0-112psi Airtec
5/3 G1/8'' Exhaust Center Air Pilot Valve ATEX 0-8bar/0-112psi Airtec
Image may vary slightly
See specifications for accurate information.
Reference: V2NU8
Brand: Airtec
Mfr. Part: P-05-533-ATEX

If you need to release air pressure when an application stops, choose a 5/3-way valve with an exhaust center. Due to the exhaust center, these valves block air from being trapped in cylinders when stopped. As an example, if clamped material needs to be removed manually, the valve needs to relieve air pressure when it is off.

View all
$104.85
excl VAT
In stock +29 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 29 days. Up to 48 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 31 - 32 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

If you need to release air pressure when an application stops, choose a 5/3-way valve with an exhaust center. Due to the exhaust center, these valves block air from being trapped in cylinders when stopped. As an example, if clamped material needs to be removed manually, the valve needs to relieve air pressure when it is off.

Downloads

Airtec P05
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/8 inch
Connection type
Inner thread cylindrical BSPP-G
Function
Circuit function of the valve
Exhaust center
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
5/3 way
Max pressure (bar)
Maximum system pressure.
8
Min pressure difference (bar)
0
Valve bore (mm)
6
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
0.58
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
70
Max control pressure (bar)
8
Min control pressure (bar)
3
Max flow rate (l/min)
650
Approval
Certifications or approvals indicating safety, quality, or performance standards met.
Atex Zone 1, Atex Zone 21
Model
Airtec P-05
Surface protection
Anodized
Max pressure (bar)
8
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Air
