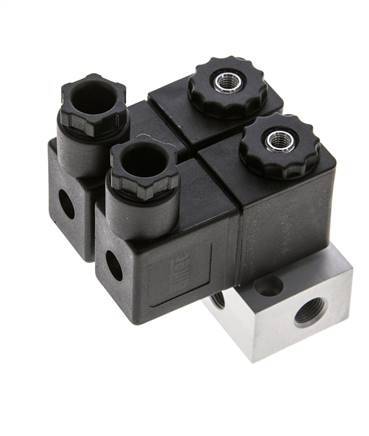

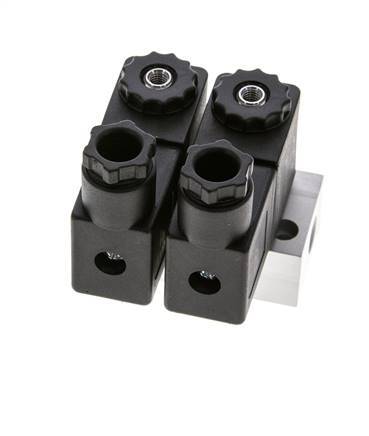

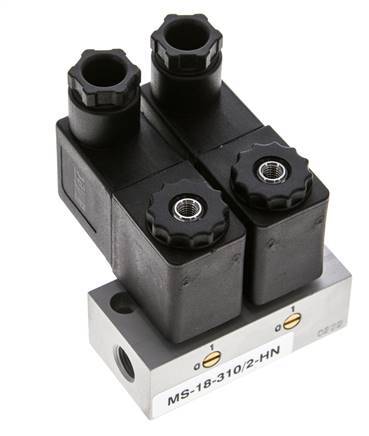

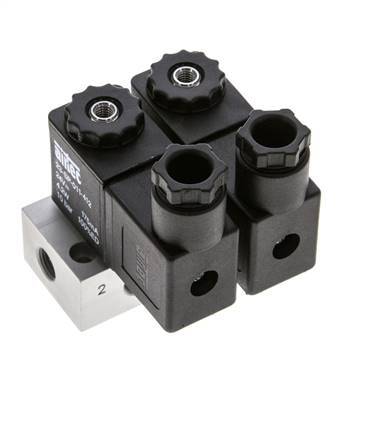

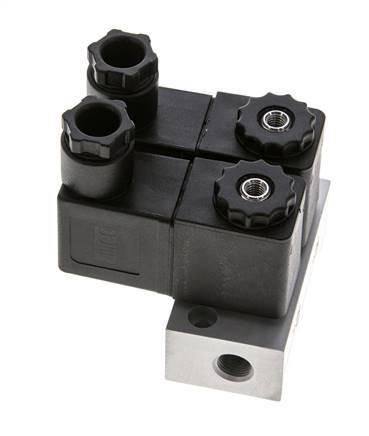

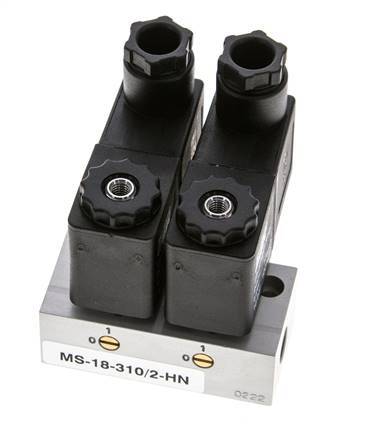

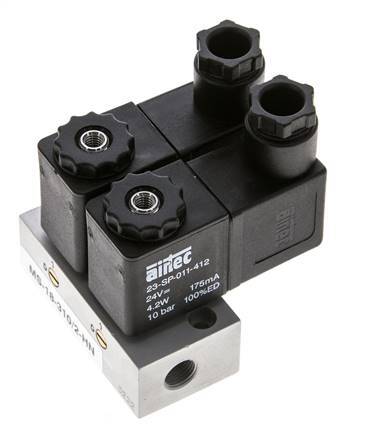

2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec

2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
2x3/2 G1/8'' NC Solenoid Valve 24V DC -0.95-10bar/-13.2-140psi Airtec
Image may vary slightly
See specifications for accurate information.
Reference: V2NSC
Brand: Airtec
Mfr. Part: MS-18-310/2-HN-412

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position.

Including coil and connector.

View all
$94.04 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position.

Downloads

Airtec MS18
pdf
Download

Specifications

Connection sizei
1/8 inch
Connection type
Inner thread cylindrical BSPP-G
Functioni
Normally closed
Voltagei
24 V DC
Materiali
Aluminium/plastic
Seal materiali
NBR (nitrile rubber)
Min pressure difference
-0.95 bar
Max pressurei
10 bar
Features
For vacuum
Valve bore
1.4 mm
Kv value [m3/h]i
0.05 m³/h
Min temperaturei
-10 °C
Max temperaturei
70 °C
Electrical connection
DIN-BI (11mm)
Degree of protection (IP)i
IP65i
Nominal power
4.2 W
Max flow rate
56 l/min
Valve ports/positionsi
3/2 way
Number of valves
2
Model
Airtec MS-18
