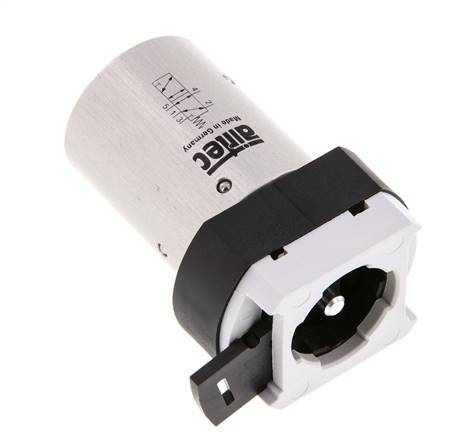

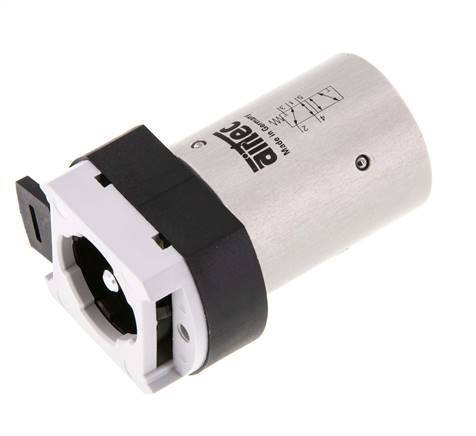

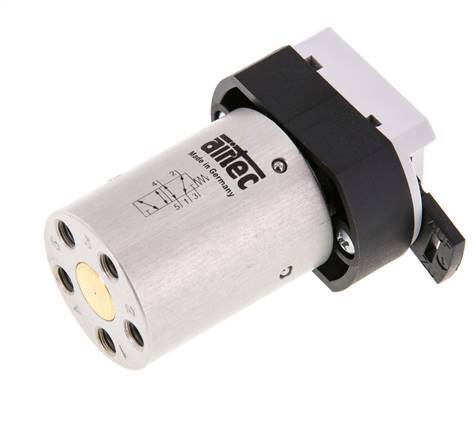

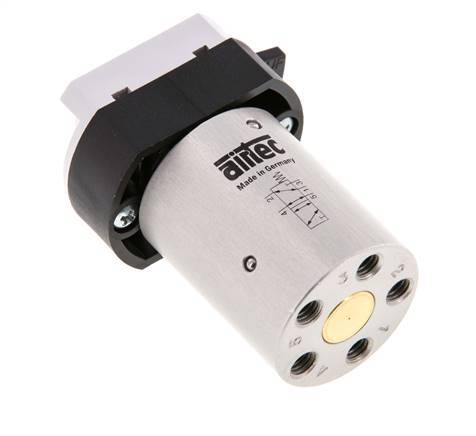

5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec

5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
5/2 M5 Body for Button Valve 0-12bar/0-168psi 30.5mm Airtec
Image may vary slightly
See specifications for accurate information.
Reference: V2N4T
Brand: Airtec
Mfr. Part: T-30-510

Use a 5/2-way valve in applications that move continuously between two positions, such as extending and retracting double-acting cylinders, where it is not necessary to stop air pressure.

View all
$82.96
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 71 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Use a 5/2-way valve in applications that move continuously between two positions, such as extending and retracting double-acting cylinders, where it is not necessary to stop air pressure.

Downloads

Airtec T30
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
M5
Connection type
Inner thread metric
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
5/2 way
Max pressure (bar)
Maximum system pressure.
12
Min pressure difference (bar)
0
Features
Switch panel 30.5 mm
Valve bore (mm)
2.4
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
0.09
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
70
Max flow rate (l/min)
100
Model
Airtec T 30
Surface protection
Anodized
Max pressure (bar)
12
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Manual
