Universal Earth Clamp D 20/25mm T 18mm With Handle - 774234

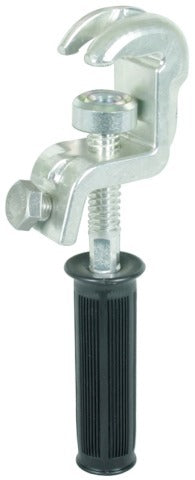

This is a universal earthing clamp designed for connecting the earthing cable to fixed ball points, T pins, along with round and flat conductors. The clamp is compliant with EN/IEC 61230 (DIN VDE 0683-100) regulations. It features an anti-rotation PK1 element and is equipped with a plastic handle for easier handling. It aims to accommodate a wire section ranging from 16 to 120mm². The clamp offers a clamping range of up to 20mm and ensures protection from a maximum short-circuit current of 33.5kA. Its primary application is on the earthing side.
- Regular price
- $138.25 USD
Description
This is a universal earthing clamp designed for connecting the earthing cable to fixed ball points, T pins, along with round and flat conductors. The clamp is compliant with EN/IEC 61230 (DIN VDE 0683-100) regulations. It features an anti-rotation PK1 element and is equipped with a plastic handle for easier handling. It aims to accommodate a wire section ranging from 16 to 120mm². The clamp offers a clamping range of up to 20mm and ensures protection from a maximum short-circuit current of 33.5kA. Its primary application is on the earthing side.
