Universal Clamp DEHN UK 25 SK D 20/25mm T 15mm Hexagon Shaft - 773034

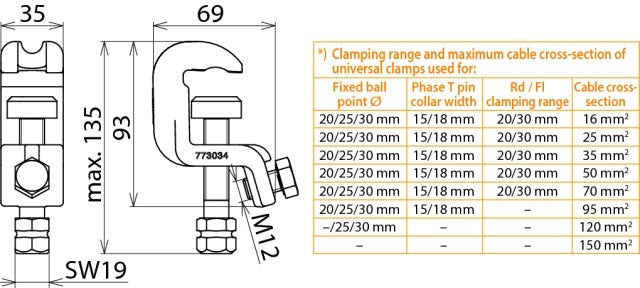

This is a universal clamp with a hexagon shaft. It is designed for use as a phase or earth connecting element in accordance with EN/IEC 61230 (DIN VDE 0683-100). It is suitable for fixed ball points, fixed T points, flat and round conductors. It is to be used for attaching to earthing and short-circuiting devices. The clamp is equipped with a PK1 anti-rotation element. It is safe for a maximum short-circuit current of 33.5kA and is appropriate for wire cross-sections of 16 - 120mm². The clamp range is 20mm with a ball-joint connection of 25mm. It comes with twist protection and the operating rod is secured with a hexagon.
- Regular price
- $136.69 USD
Description
This is a universal clamp with a hexagon shaft. It is designed for use as a phase or earth connecting element in accordance with EN/IEC 61230 (DIN VDE 0683-100). It is suitable for fixed ball points, fixed T points, flat and round conductors. It is to be used for attaching to earthing and short-circuiting devices. The clamp is equipped with a PK1 anti-rotation element. It is safe for a maximum short-circuit current of 33.5kA and is appropriate for wire cross-sections of 16 - 120mm². The clamp range is 20mm with a ball-joint connection of 25mm. It comes with twist protection and the operating rod is secured with a hexagon.
