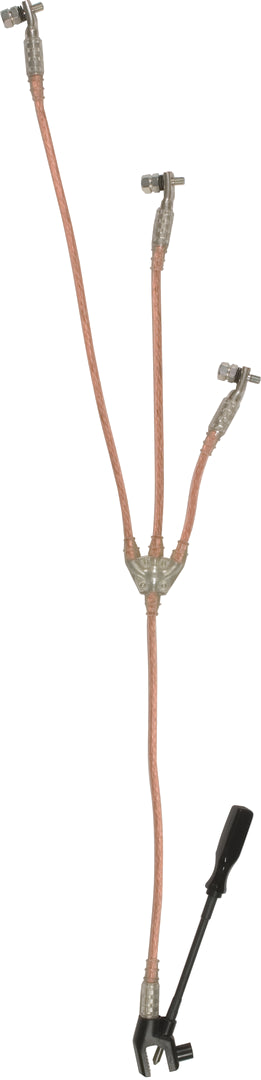

Three-Pole Earthing And Short-Circuiting Device TI 25MM With M10 Bolts - VSUN6NV
The Dehn TI earthing and short-circuiting device is a copper design with a cable execution and three poles. It features an other connection part on the earth side, and an other connecting part on the phase side. It has a wire cross-section of 25mm² on both the earth and phase sides. The ground wire length is 500mm, and the phase wires are 200mm and 400mm respectively. The device is partly insulated, boasting an earth clamp with a flexible adjustable handle and two setting positions with a clamping range of up to 20mm. Designed for cable distribution cabinets, the variant No. of the device is VSUN6NV. Other cable lengths can be configured online via the Dehn’s earthing and short-circuiting configurator.
- Regular price
- $574.78 USD
We sell only to registered businesses
Description
The Dehn TI earthing and short-circuiting device is a copper design with a cable execution and three poles. It features an other connection part on the earth side, and an other connecting part on the phase side. It has a wire cross-section of 25mm² on both the earth and phase sides. The ground wire length is 500mm, and the phase wires are 200mm and 400mm respectively. The device is partly insulated, boasting an earth clamp with a flexible adjustable handle and two setting positions with a clamping range of up to 20mm. Designed for cable distribution cabinets, the variant No. of the device is VSUN6NV. Other cable lengths can be configured online via the Dehn’s earthing and short-circuiting configurator.
