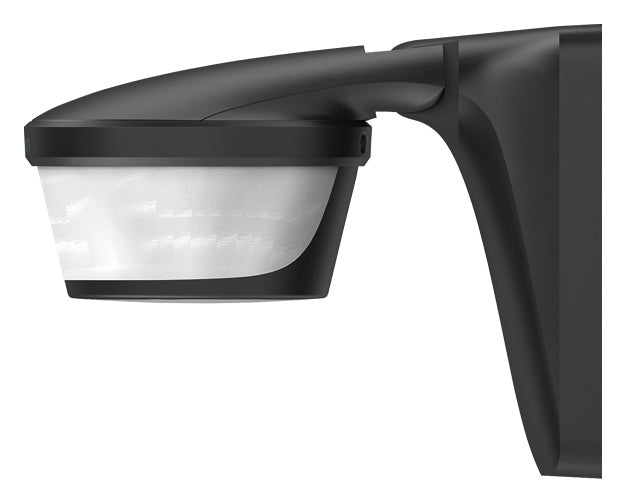

Theben TheLuxa Motion Detector Bus System - 1019611

Theben TheLuxa Motion Detector Bus System - 1019611
Theben TheLuxa Motion Detector Bus System - 1019611
Image may vary slightly
See specifications for accurate information.
Reference: E35J7
Brand: Theben
Mfr. Part: 1019611

Motion detector with integrated bus coupler for wall, ceiling or corner mounting, rotatable and swiveling sensor head, with undercrawl protection, detection range 300°, adjustable range 2.5-16 m (mounting height 2.5 m), detection range adjustable with segments, indoor or outdoor mounting (IP55), automatic light control depending on presence and light intensity, mixed light measurement 5...1000 lx, switch-on time 1 s...20 min, functions:

  • lighting ON/OFF,
  • shutters/blinds UP/DOWN,
  • switch-off delay,
  • blocking of the detector,
  • scenes,
  • dimming value,
  • dimming UP/DOWN,
  • master/slave function.
View all
$310.11
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Motion detector with integrated bus coupler for wall, ceiling or corner mounting, rotatable and swiveling sensor head, with undercrawl protection, detection range 300°, adjustable range 2.5-16 m (mounting height 2.5 m), detection range adjustable with segments, indoor or outdoor mounting (IP55), automatic light control depending on presence and light intensity, mixed light measurement 5...1000 lx, switch-on time 1 s...20 min, functions:

  • lighting ON/OFF,
  • shutters/blinds UP/DOWN,
  • switch-off delay,
  • blocking of the detector,
  • scenes,
  • dimming value,
  • dimming UP/DOWN,
  • master/slave function.

Downloads

Specifications

Bus system KNX
Yes
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Model
Movement sensor
Mounting method
Surface mounted (plaster)
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Surface protection
The type of surface protection of the component.
Other
Surface finishing
Matt
Color
Black
RAL-number (similar)
9005
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
Yes
Operation mode switch
No
Animal zone
No
Staircase monitoring
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
Yes
Switch-off delay self-learning
No
Optimum mounting height (m)
2.5
Max. transmission range sideways (m)
16
Max. transmission range frontally (m)
16
Diameter detection range on floor (m)
32
Detection angle vertical (°)
0 ° to 90 °
Detection angle horizontal (°)
0 ° to 300 °
Number of channels
2
Min. switch-on time (s)
1
Max. duty cycle (min)
20
