Theben TheLeda Downlight/Spotlight/Floodlight - 1020934

Notice: This product is discontinued

Discontinued

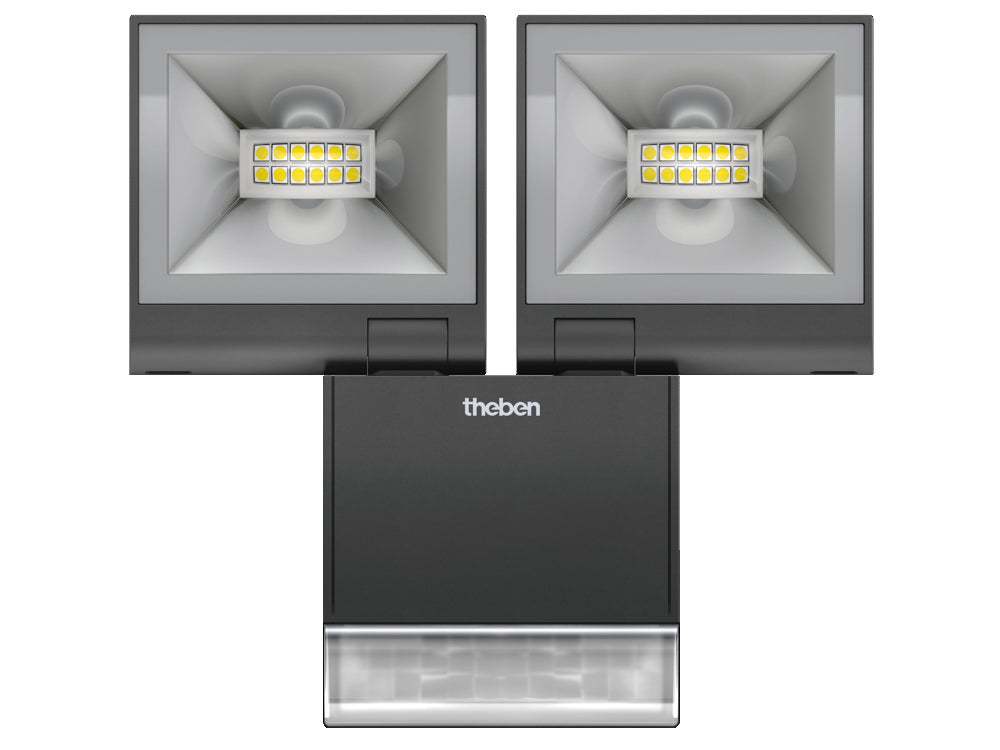

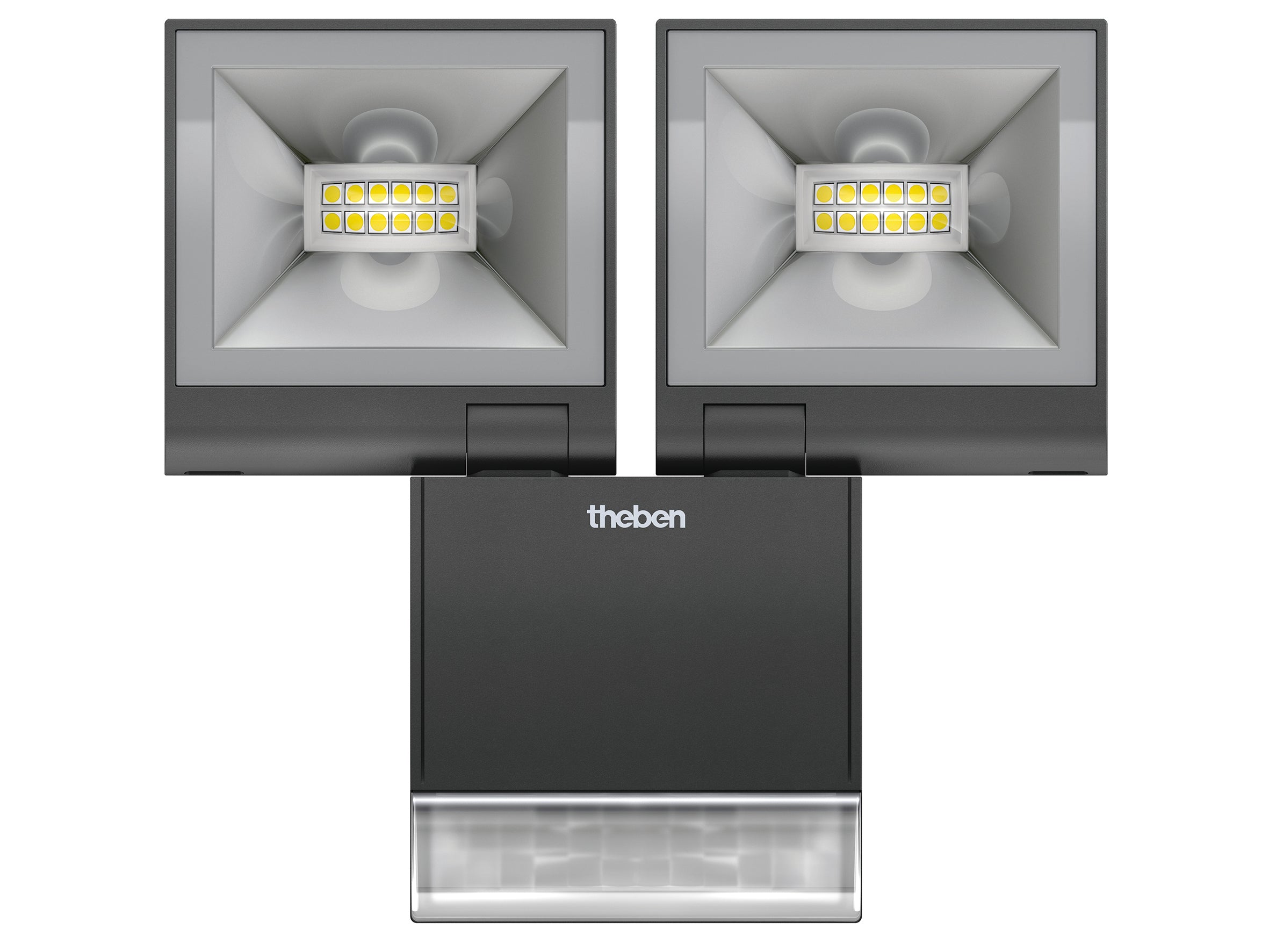

Theben TheLeda Downlight/Spotlight/Floodlight - 1020934
Theben TheLeda Downlight/Spotlight/Floodlight - 1020934
Image may vary slightly
See specifications for accurate information.
Reference: E38VV
Brand: Theben
Mfr. Part: 1020934

Theben TheLeda S downlight/spotlight/spotlight, luminous flux 1680lm, effective luminous flux according to IEC 770lm, temperature 3000K, light color white, system power 20W, housing black, degree of protection (IP) IP55, with motion sensor, type of dimming other, with light sensor.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Theben TheLeda S downlight/spotlight/spotlight, luminous flux 1680lm, effective luminous flux according to IEC 770lm, temperature 3000K, light color white, system power 20W, housing black, degree of protection (IP) IP55, with motion sensor, type of dimming other, with light sensor.

Downloads

Compliance and Certification (EN)
pdf
Download

Specifications

Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Rotating and swivelling
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of lamps
0
Lamp holder
None
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Surface protection
The type of surface protection of the component.
Lacquered
Colour housing
Black
Material cover
Plastic, transparent
Surface brushed
No
Voltage-type
AC
Nominal voltage (V)
230 V to 230 V
LED nominal current at constant current (mA)
0 mA to 10 mA
Type of control gear
Not required
With control gear
Yes
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Reflector
High-gloss
Light distributor
Reflector
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Light outlet
Direct
Energy efficiency class
A
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Total harmonic distortion
27
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP55
Degree of protection (NEMA)
4
Impact strength
IK04
Protection class
I
Rated ambient temperature according to IEC62722-2-1 (°C)
-20 °C to 45 °C
Max. system power (W)
20
Colour of light
White
Colour temperature (K)
3000 K to 3000 K
Colour rendering index CRI
80-89
Luminous flux (lm)
1680 lm to 1680 lm
Rated luminous flux according to IEC 62722-2-1 (lm)
770
Power factor
0.95
Width (mm)
The product's width without packaging.
50
Height/depth (mm)
160
Length (mm)
167
Type of wiring
Ending
Number of poles
4
Conductor cross section (mm²)
2.5
Connectable conductor cross section (mm²)
0 mm² to 2.5 mm²
Connection type
Screwed terminal
Luminaire with limited surface temperature, sign "D“
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy (lm/W)
70
Photobiological safety according to EN 62471
RG0
Covering of the luminaire with thermally insulating material possible
No
Colour consistency (McAdam ellipse)
SDCM6
