Theben TA Binary Input Bus System - 4969226

Notice: This product is discontinued

Discontinued

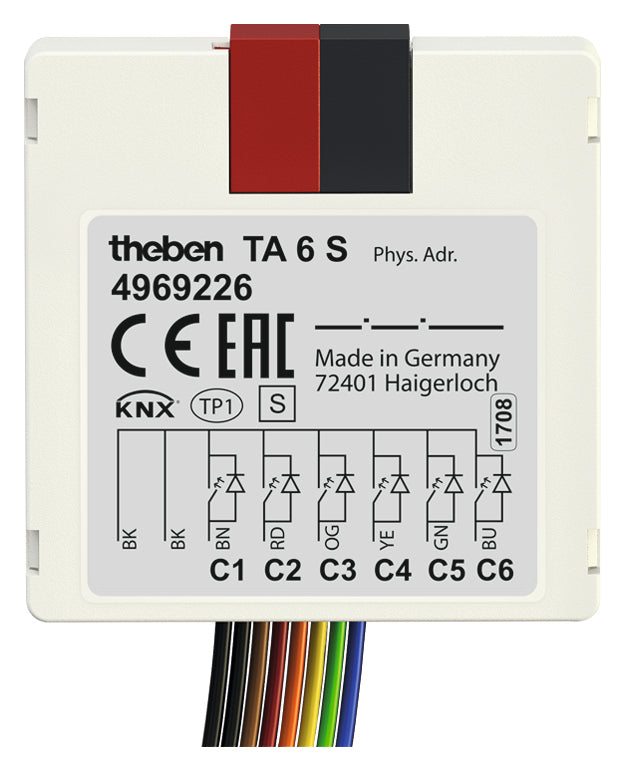

Theben TA Binary Input Bus System - 4969226
Theben TA Binary Input Bus System - 4969226
Image may vary slightly
See specifications for accurate information.
Reference: E2775
Brand: Theben
Mfr. Part: 4969226

Theben TA binary input bus system, bus system KNX, flush-mounted, 6 inputs, degree of protection (IP) IP20, bus connection incl., external signal voltage necessaryij, input voltage 5V, LED control, min. Depth of flush-mounted box 13mm, type of input voltage AC/DC.

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Theben TA binary input bus system, bus system KNX, flush-mounted, 6 inputs, degree of protection (IP) IP20, bus connection incl., external signal voltage necessaryij, input voltage 5V, LED control, min. Depth of flush-mounted box 13mm, type of input voltage AC/DC.

Downloads

Specifications

Bus system KNX
Yes
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Mounting method
Flush mounted (plaster)
Width in number of modular spacings
0
With bus connection
Yes
Bus module detachable
No
LED controlling
Yes
With LED indication
No
Number of inputs
6
Input voltage (V)
5 V to 5 V
Type of voltage (input voltage)
AC/DC
External signal voltage necessary
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Min. depth of built-in installation box (mm)
13
