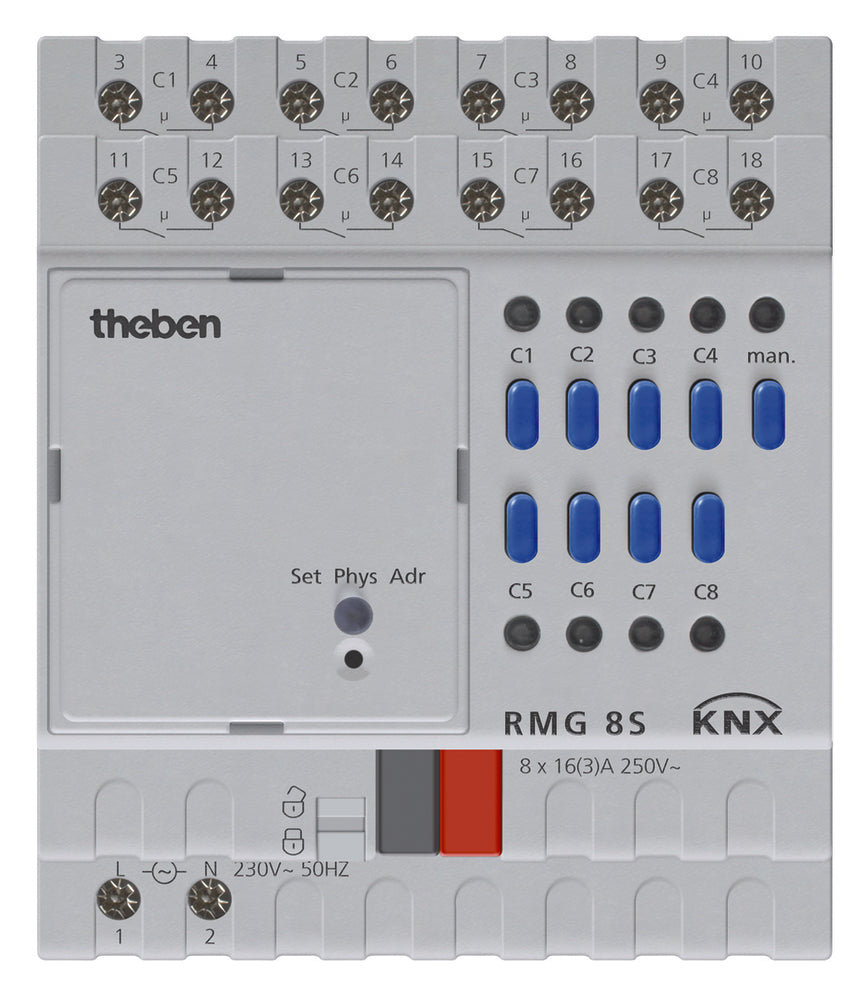

Theben RMG Bus Switching Actuator - 4930220

Theben RMG Bus Switching Actuator - 4930220
Theben RMG Bus Switching Actuator - 4930220
Image may vary slightly
See specifications for accurate information.
Reference: E2QJS
Brand: Theben
Mfr. Part: 4930220

Theben RMG switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, max. Number of switching outputs 8, operating voltage (measurement voltage) 110 - 230V, degree of protection (IP) IP20, width in module units 4, bus connection incl., bus module detachable, manual operation, max. Switching current 16A.

View all
$576.60
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Theben RMG switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, max. Number of switching outputs 8, operating voltage (measurement voltage) 110 - 230V, degree of protection (IP) IP20, width in module units 4, bus connection incl., bus module detachable, manual operation, max. Switching current 16A.

Downloads

Specifications

Bus system KNX
Yes
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
4
Local operation/hand operation
Yes
With LED indication
Yes
Number of digital inputs
0
Max. switching power (W)
0
Output power (W)
3680
Suitable for C-load
No
Max. number of switching contacts
8
Max. switching current (A)
16
Rated operating voltage (V)
110 V to 230 V
Different phases connectable
Yes
With bus connection
Yes
Bus module detachable
Yes
Modular expandability
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
