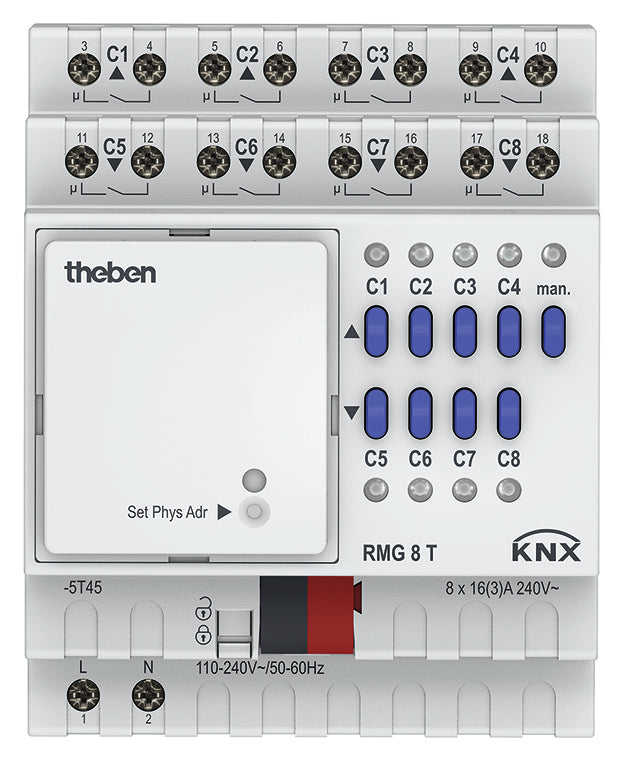

Theben RMG Bus Switching Actuator - 4930200
Theben RMG switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, max. Number of switching outputs 8, operating voltage (measurement voltage) 110 - 230V, degree of protection (IP) IP20, width in module units 4, bus connection incl., bus module detachable, manual operation, max. Switching current 16A.
- Regular price
- $589.45
Description
Switching/blind actuator, basic module, with relay outputs for 8 switching channels or 4 blind channels, can be extended with RME 8 T or with other MIX expansion modules, DIN rail mounting width 72 mm, device and bus coupling can be replaced independently of each other.
Switching state display with LEDs for each channel, manual operation on the device (even without bus voltage), contacts (make/break) and participation in central function as:
- continuous on,
- continuous off,
- central switching,
- scenes,
- store/recall scenes,
Switching functions:
- on/off,
- pulse,
- on/off delay,
- staircase lighting,
Logical functions:
- blocking,
- AND,
- release,
- OR.
Feedback object for each channel, central objects with and without priority, recall and store scenes (object), scene object for each channel, 16A/250V cos phi = 1
