Theben RME Switching Actuator Bus System - 4930215

Notice: This product is discontinued

Discontinued
Theben RME Switching Actuator Bus System - 4930215
Theben RME Switching Actuator Bus System - 4930215
Image may vary slightly
See specifications for accurate information.
Reference: E2QJR
Brand: Theben
Mfr. Part: 4930215

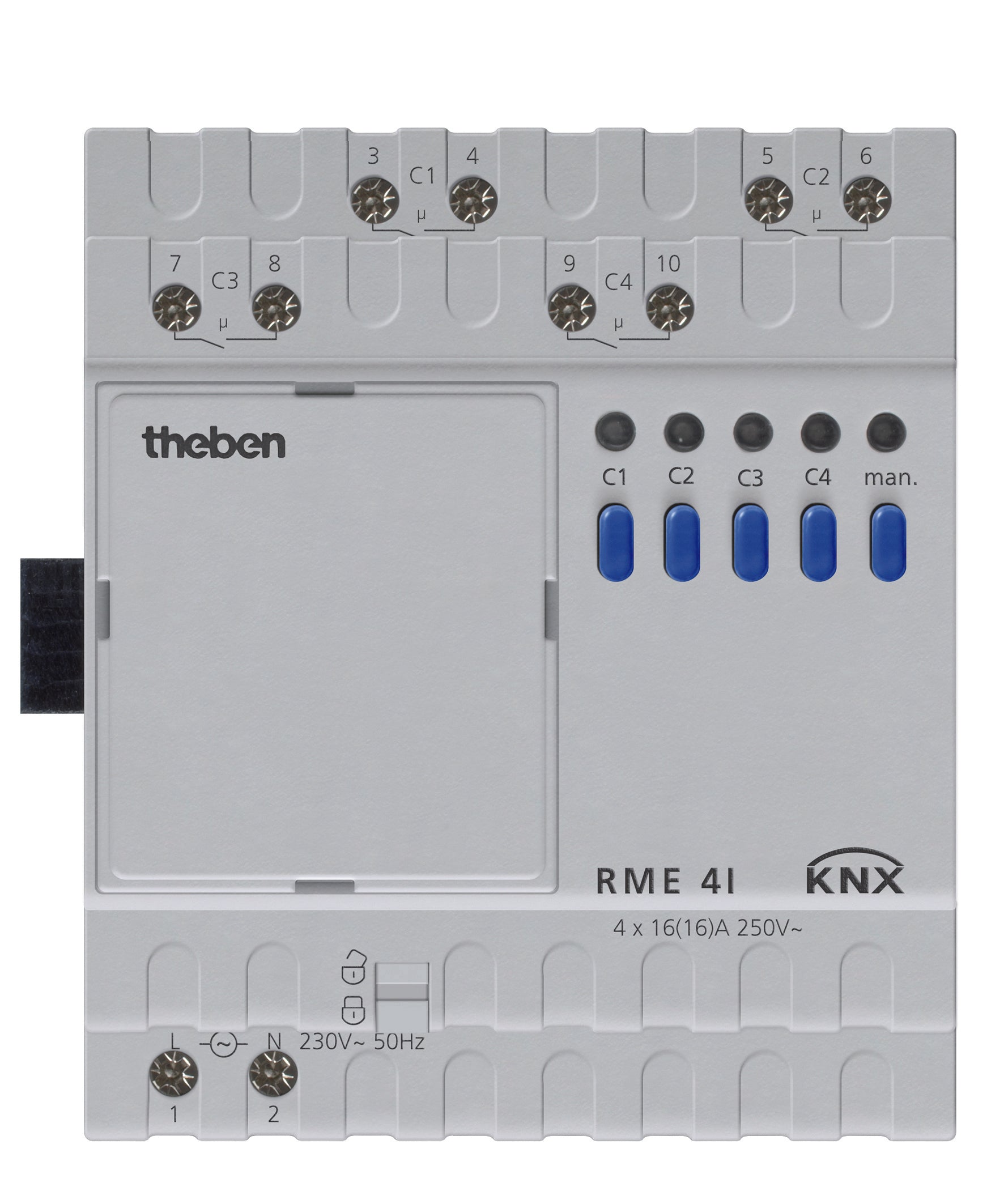

Theben RME switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, C-load, max. Number of switching outputs 4, operating voltage (measuring voltage) 110 - 230V, degree of protection (IP) IP20, width in module units 4, bus connection included, bus module removable, manual operation.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Theben RME switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, C-load, max. Number of switching outputs 4, operating voltage (measuring voltage) 110 - 230V, degree of protection (IP) IP20, width in module units 4, bus connection included, bus module removable, manual operation.

Downloads

Specifications

Bus system KNX
Yes
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
4
Local operation/hand operation
Yes
With LED indication
Yes
Number of digital inputs
0
Max. switching power (W)
0
Output power (W)
3680
Suitable for C-load
Yes
Max. number of switching contacts
4
Max. switching current (A)
16
Rated operating voltage (V)
110 V to 230 V
Different phases connectable
Yes
With bus connection
Yes
Bus module detachable
Yes
Modular expandability
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
