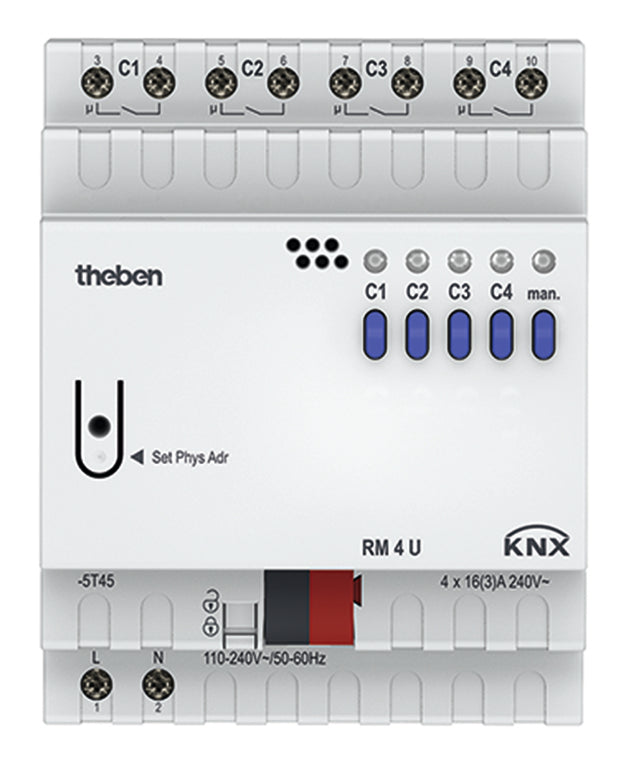

Theben RM Switch Actuator Bus System - 4940223
Notice: This product is discontinued
Theben RM switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, max. Number of switching outputs 4, operating voltage (measurement voltage) 110 - 230V, degree of protection (IP) IP20, width in module units 4, bus connection included, manual operation, max. Switching current 16A.
Notice: This product is discontinued
Description
EIB/KNX switch actuator, with relay outputs for 4 switch channels, DIN-rail mounting, width 72 mm, LED switch status display for each channel, manual operation with status display (even without bus voltage), contacts (make/break) and participation in central function as continuous on, continuous off, central switching, scenes, storing/recalling scenes, switching functions: on/off, impulse, on/off delay, staircase lighting, logical functions: blocking, AND, releasing, OR.
- Feedback object for each channel
- Central objects with and without priority
- Recalling and storing scenes (object)
- Scene object for each channel
16A/250V cos phi = 1
