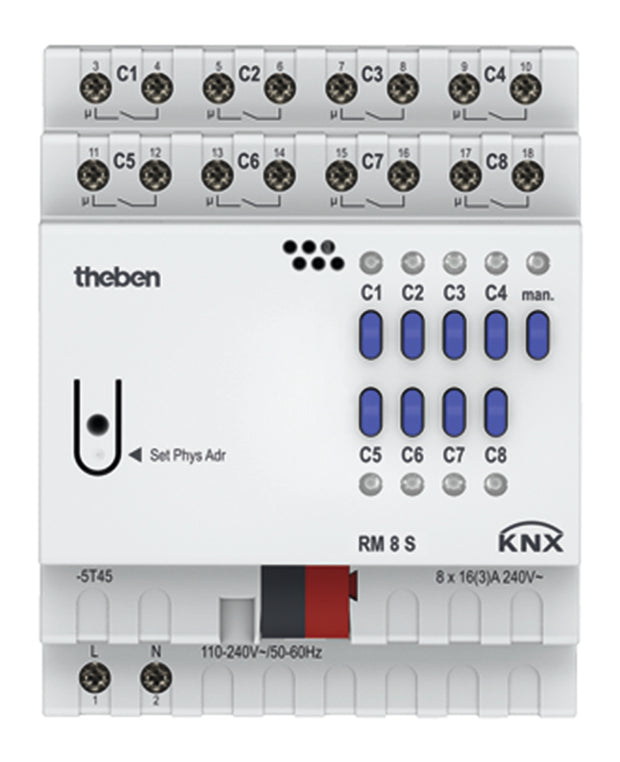

Theben RM Switch Actuator Bus System - 4940220
Notice: This product is discontinued
Theben RM switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, max. Number of switching outputs 8, operating voltage (measurement voltage) 110 - 230V, degree of protection (IP) IP20, width in module units 4, bus connection included, manual operation, max. Switching current 16A.
Notice: This product is discontinued
Description
EIB/KNX switch actuator, with relay outputs for 8 switch channels, DIN-rail mounting, width 72 mm, LED switch status display for each channel, manual operation with status display (also without bus voltage), contacts (make/break) and participation in central function as continuously on, continuously off, central switching, scenes, scenes save/call, switch functions: on/off, pulse, on/off delay, stairwell lighting, logical functions: block, AND, release, OR. Feedback object for each channel, central objects with and without priority, call and save scenes (object), scene object for each channel, 16A / 250V cos phi = 1.
