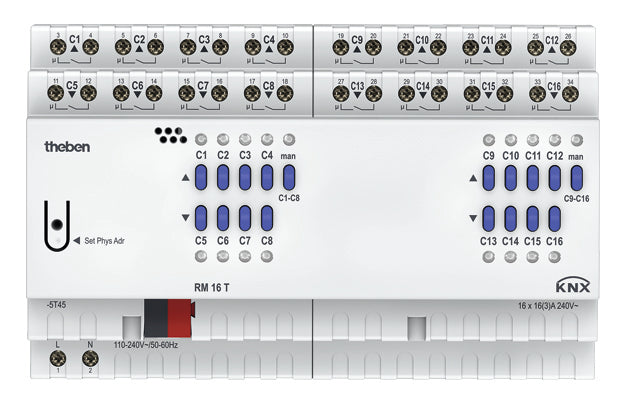

Theben RM Switch Actuator Bus System - 4940205
Theben RM switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, max. Number of switching outputs 16, 1 digital inputs, operating voltage (measurement voltage) 110 - 230V, degree of protection (IP) IP20, width in module units 8, bus connection incl., manual operation, max. Switching current 16A.
- Regular price
- $767.22
Description
EIB/KNX switch-/blind actuator, basic module, with relay outputs for 16 switch channels or 8 blind channels, DIN-rail mounting, width 145 mm, LED switch state display for each channel, manual operation with status display (also without bus voltage), contacts (make/break) and participation in central function as continuous on, continuous off, central switching, scenes, scenes store/call, switch functions:
- On/off,
- Impulse,
- On/off delay,
- Staircase lighting,
- Logical functions: blocking, AND, releasing, OR.
Feedback object for each channel, central objects with and without priority, scenes call and store (object), scene object for each channel, 16A/250V cos phi = 1
