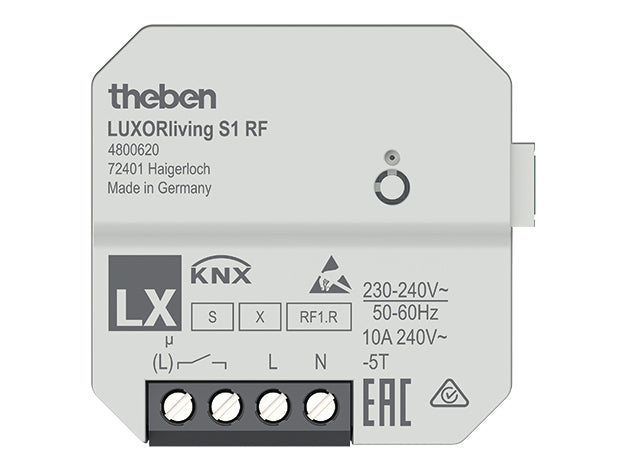

Theben LUXORliving Switch Actuator Bus System - 4800620

Notice: This product is discontinued

Discontinued
Theben LUXORliving Switch Actuator Bus System - 4800620
Theben LUXORliving Switch Actuator Bus System - 4800620
Image may vary slightly
See specifications for accurate information.
Reference: E2NTW
Brand: Theben
Mfr. Part: 4800620

Theben LUXORliving RF switching actuator bus system.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Theben LUXORliving RF switching actuator bus system.

Downloads

Specifications

Bus system KNX
Yes
Bus system KNX radio
Yes
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
Yes
Mounting method
Flush mounted (plaster)
Local operation/hand operation
No
With LED indication
No
Number of digital inputs
2
Max. switching power (W)
1800
Output power (W)
2000
Suitable for C-load
No
Max. number of switching contacts
1
Max. switching current (A)
16
Rated current (A)
10
Rated operating voltage (V)
230 V to 230 V
Different phases connectable
Yes
With bus connection
Yes
Bus module detachable
No
Min. depth of built-in installation box (mm)
35
Modular expandability
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
