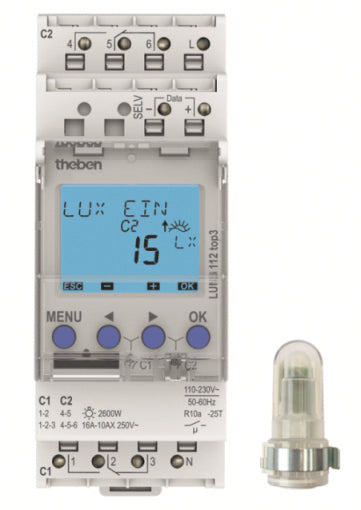

Theben Luna Twilight Switch For DIN-Rail - 1120130

Theben Luna Twilight Switch For DIN-Rail - 1120130
Theben Luna Twilight Switch For DIN-Rail - 1120130
Image may vary slightly
See specifications for accurate information.
Reference: E2K5H
Brand: Theben
Mfr. Part: 1120130

Theben Luna twilight switch for din-rail, mounting type light sensor wall mounted, protection rating (IP) IP20, protection rating (IP) light sensor IP55, protection class light sensor II, width in module units 2, installation depth 69.2mm, adjustment range brightness value 1 - 99000lx.

View all
$271.76
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Theben Luna twilight switch for din-rail, mounting type light sensor wall mounted, protection rating (IP) IP20, protection rating (IP) light sensor IP55, protection class light sensor II, width in module units 2, installation depth 69.2mm, adjustment range brightness value 1 - 99000lx.

Downloads

Specifications

Rated voltage (V)
230
Rated frequency (Hz)
50 Hz to 60 Hz
Max. incandescent lamp load (W)
3600
Max. load fluorescent lamp (VA)
3600
Max. load fluorescent lamp (Duo circuit) (VA)
3600
Max. load fluorescent lamp (parallel compensated) (VA)
1200
Max. switching current (cos phi = 0.6) (A)
10
Rated switch current (A)
16
Adjustment range brightness value (lx)
1 lx to 99000 lx
With programmable overnight shutoff
No
Push button input
No
Rated voltage light sensor (V)
0
Max. conductor length light sensor (m)
100
Protection class light sensor
II
Mounting method light sensor
Wall surface mounted
Mounting method
DIN rail
Width in number of modular spacings
2
Built-in depth (mm)
69.2
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Degree of protection (IP) light sensor
IP55
