Theben Interface Bus System - 8559201

Theben Interface Bus System - 8559201
Theben Interface Bus System - 8559201
Image may vary slightly
See specifications for accurate information.
Reference: E36B6
Brand: Theben
Mfr. Part: 8559201

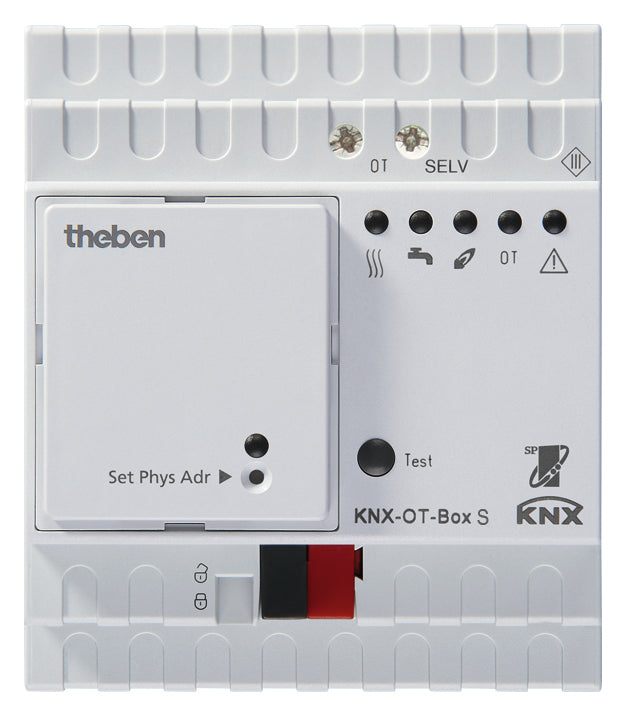

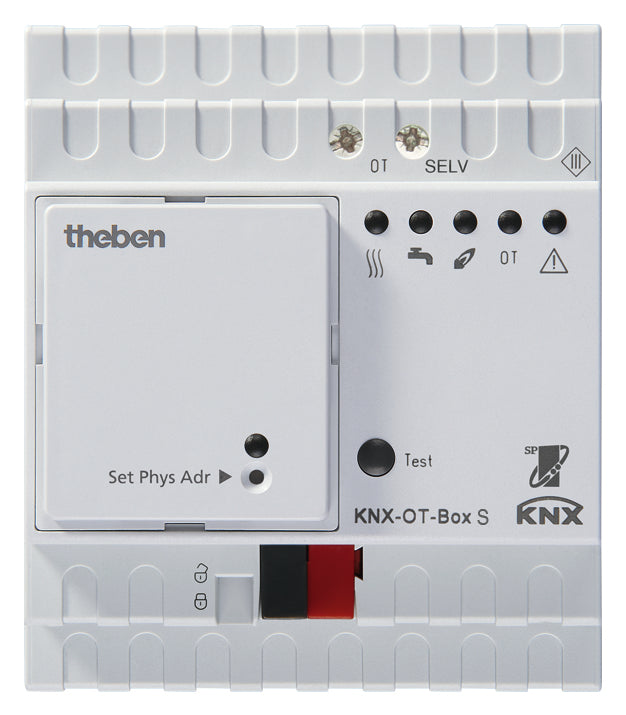

KNX-OT-Box for coupling with OpenTherm bus and KNX bus, the interface can be used as a Master for the OpenTherm heating device in combination with KNX room controller(s), display of status and fault messages are sent via the KNX bus.

Weather prediction for the expected sunshine can be used at the hot water supply in combination with a solar collector, in combination with the OT-Box (9070712) of the RAMSES 856 top2 OT (8569132), even heating systems without OpenTherm interface are controllable, power supply via the bus, DIN-rail mounting, width 4 TE.

View all
$477.31
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

KNX-OT-Box for coupling with OpenTherm bus and KNX bus, the interface can be used as a Master for the OpenTherm heating device in combination with KNX room controller(s), display of status and fault messages are sent via the KNX bus.

Weather prediction for the expected sunshine can be used at the hot water supply in combination with a solar collector, in combination with the OT-Box (9070712) of the RAMSES 856 top2 OT (8569132), even heating systems without OpenTherm interface are controllable, power supply via the bus, DIN-rail mounting, width 4 TE.

Downloads

Specifications

Bus system KNX
Yes
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
4
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Surface protection
The type of surface protection of the component.
Untreated
Surface finishing
Matt
RAL-number (similar)
9010
Transparent
No
Max. data transmission rate (Bd)
0
With bus connection
Yes
With label area
Yes
With LED indication
Yes
