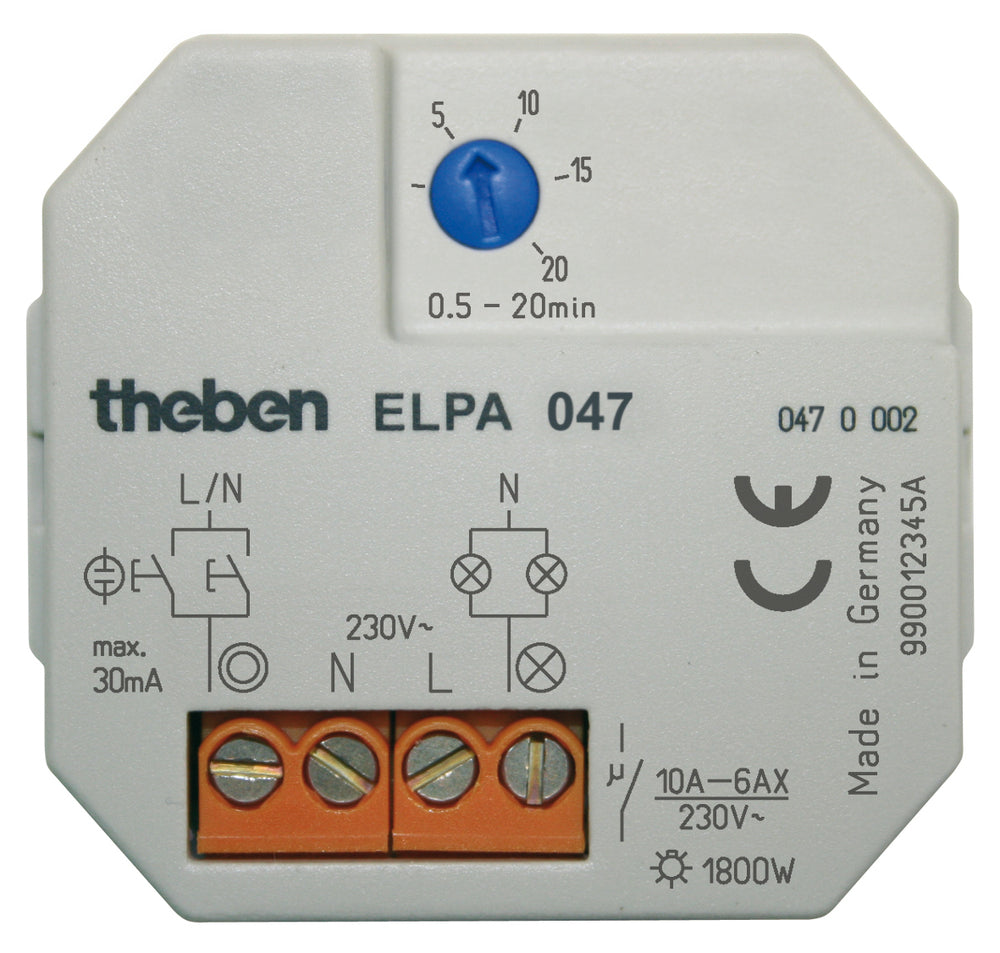

Theben ELPA Staircase Switch - 0470002

Theben ELPA Staircase Switch - 0470002
Theben ELPA Staircase Switch - 0470002
Image may vary slightly
See specifications for accurate information.
Reference: E2J67
Brand: Theben
Mfr. Part: 0470002

This ELPA 047 stairwell switch from Theben is an electronic stairwell time switch suitable for automatic switching of lighting in stairwells, garages and courtyards, for example. The time after which the light turns off is adjustable from 30 seconds to 20 mminutes. Also, the stairwell time switch is directly post-switchable. The recessed time switch is suitable for both existing and new installations. The ELPA staircase switch must be mounted in a flush-mounted box. In addition, the recessed time switch is suitable for both 3-wire and 4-wire switching.

View all
$78.04
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

This ELPA 047 stairwell switch from Theben is an electronic stairwell time switch suitable for automatic switching of lighting in stairwells, garages and courtyards, for example. The time after which the light turns off is adjustable from 30 seconds to 20 mminutes. Also, the stairwell time switch is directly post-switchable. The recessed time switch is suitable for both existing and new installations. The ELPA staircase switch must be mounted in a flush-mounted box. In addition, the recessed time switch is suitable for both 3-wire and 4-wire switching.

Downloads

Management, operation and maintenance document (EN)
pdf
Download

Specifications

Function
Electronic
Mounting method
Flush mounted (plaster)
Width in number of modular spacings
0
Built-in depth (mm)
23.5
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1 (V)
230 V to 230 V
Type of control voltage 1
AC
Frequency control voltage 1 (Hz)
50 Hz to 60 Hz
Rated switch current (A)
8
Max. switching current (cos phi = 0.6) (A)
5
Release-delay (min)
0.5 min to 20 min
Push button glow-lamp current (mA)
30
Wiring system
3 and 4 wire configuration
Pre-warning of switching-off
None
Current surge function selectable
No
Repetitive
None
Supply voltage (V)
220 V to 240 V
Voltage type of supply voltage
AC
Max. incandescent lamp load (W)
1500
Max. load fluorescent lamp (VA)
1000
Max. load fluorescent lamp (Duo circuit) (VA)
1000
Max. load fluorescent lamp (parallel compensated) (VA)
400
