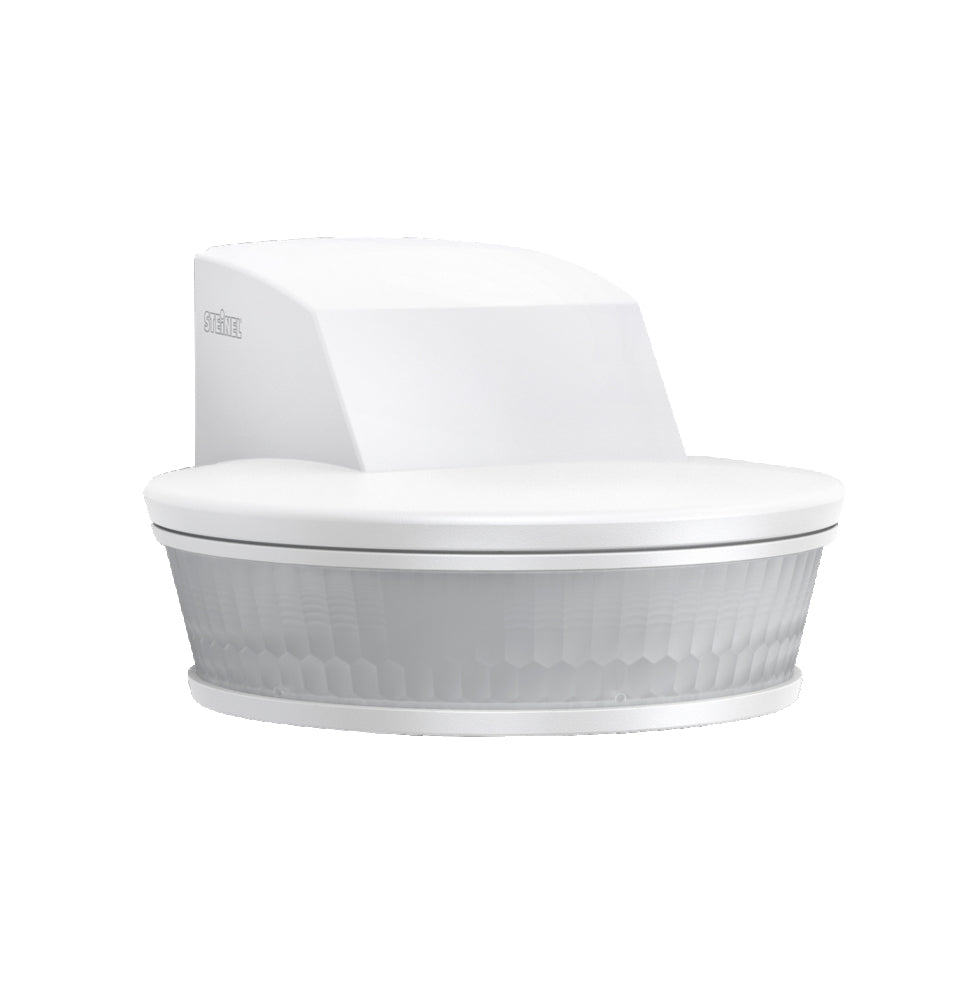

Steinel SensIQ Motion Switch (Complete) - 034955

Steinel SensIQ Motion Switch (Complete) - 034955
Steinel SensIQ Motion Switch (Complete) - 034955
Image may vary slightly
See specifications for accurate information.
Reference: E2TAN
Brand: Steinel
Mfr. Part: 034955

Steinel SensIQ motion switch (complete), white, other, version motion detector, protection rating (IP) IP54, optimal mounting height 2m, detector type passive infrared, max. Range frontal 20m, suitable for wall mounting, remote control, max. Range sideways 20m.

View all
$167.90
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Steinel SensIQ motion switch (complete), white, other, version motion detector, protection rating (IP) IP54, optimal mounting height 2m, detector type passive infrared, max. Range frontal 20m, suitable for wall mounting, remote control, max. Range sideways 20m.

Downloads

Compliance and Certification (EN)
pdf
Download

Specifications

Model
Movement sensor
Sensor type
Passive infrared
With DALI interface
No
Constant light control
No
HVAC-control
No
Forced switch on
No
Forced switch off
Yes
Animal zone
No
Creep-under protection
Yes
Networkable
Yes
Optimum mounting height (m)
2
Staircase monitoring
Yes
Bridging switch
Yes
Max. transmission range sideways (m)
20
Max. transmission range frontally (m)
20
Diameter detection range on floor (m)
8
Suitable for wireless transmission
No
Remote operation
Yes
With remote control
Yes
Response value sensitivity adjustable
No
Response value luminosity adjustable
Yes
With signal unit
Yes
Teach-function for response value luminosity
Yes
Suitable for ceiling mounting
No
Suitable for wall mounting
Yes
Dim function with dimmer basic element
No
Mounting method
Other
Connection type
Other
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Other
Surface finishing
Matt
Anti-bacterial treatment
No
Color
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP54
Voltage-type
AC
Frequency (Hz)
50 Hz to 60 Hz
Nominal voltage (V)
240
Min. switch-on time (s)
5
Max. duty cycle (min)
15
Switch-off delay (s)
300
Switching-on delay (s)
0
Detection angle horizontal (°)
300 ° to 300 °
Response value luminosity (lx)
2 lx to 2000 lx
Max. switching power (W)
2000
Suitable for C-load
Yes
Temperature (°C)
-20 °C to 50 °C
Number of switching zones
1360
Max. starting current (A)
800
Min. starting current (A)
0.1
Control current (mA)
0
Substation input
Yes
With alarm function
No
Width (mm)
The product's width without packaging.
114
Height (mm)
The product's height without packaging.
128
Depth (mm)
The product's depth without packaging.
128
