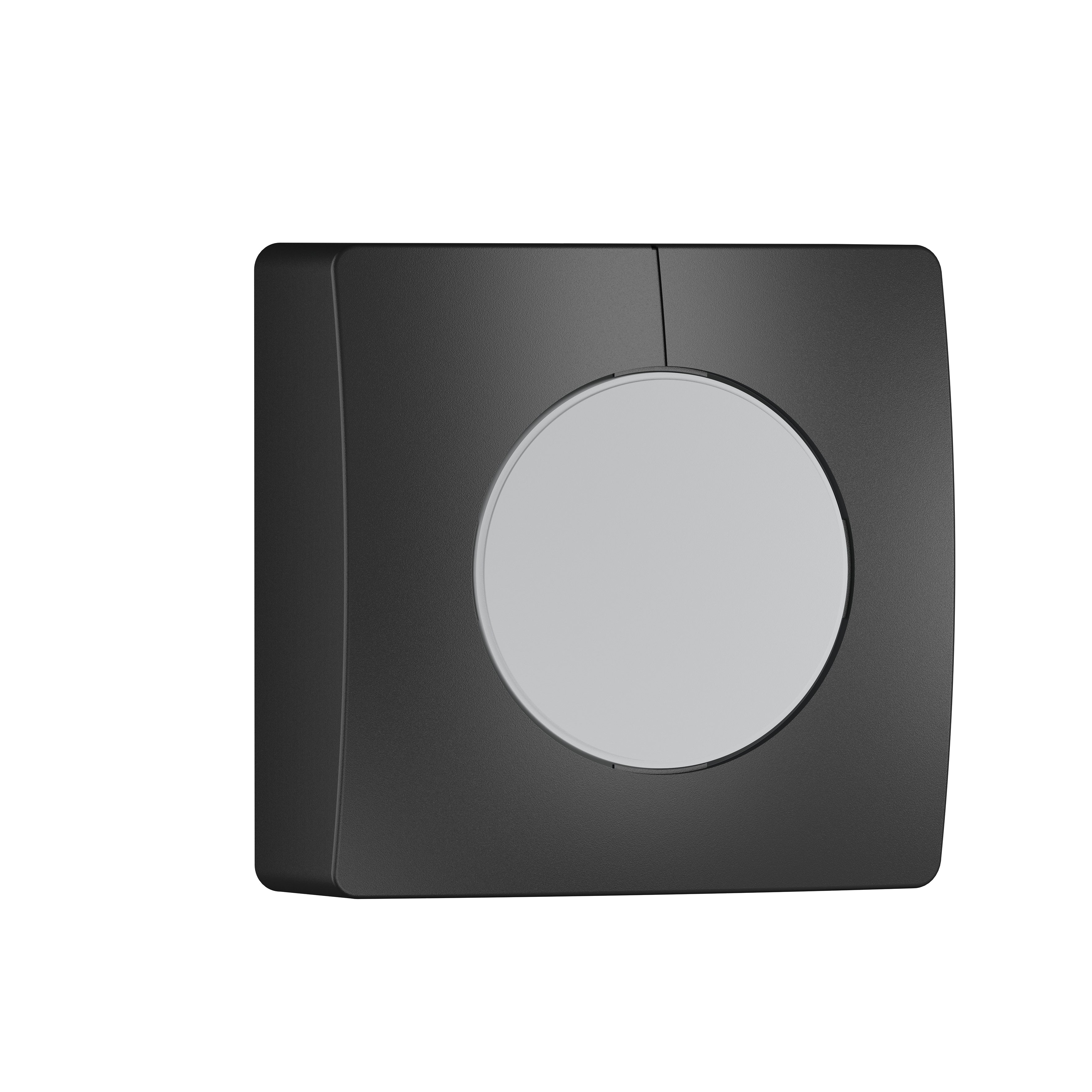

Steinel NightMatic Twilight Switch - 011680

Notice: This product is discontinued

Discontinued
Steinel NightMatic Twilight Switch - 011680
Steinel NightMatic Twilight Switch - 011680
Image may vary slightly
See specifications for accurate information.
Reference: E2M86
Brand: Steinel
Mfr. Part: 011680

Steinel NightMatic twilight switch, plastic, black, (WxDxH) 95x95x95mm, surface-mounted, sensor type light sensor built-in, protection rating (IP) IP54, contacts 1 make contact, max. Switching capacity 2000W, with automatic night switch-off, operating temperature -20 - +50°C, C-load.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Steinel NightMatic twilight switch, plastic, black, (WxDxH) 95x95x95mm, surface-mounted, sensor type light sensor built-in, protection rating (IP) IP54, contacts 1 make contact, max. Switching capacity 2000W, with automatic night switch-off, operating temperature -20 - +50°C, C-load.

Downloads

Compliance and Certification (EN)
pdf
Download

Specifications

Type of sensor
Built-in light sensor
Contacts
1 make contact (NO)
Engaging brightness (lx)
2 lx to 1000 lx
Switching-off brightness (lx)
2 lx to 1000 lx
Max. switching power (W)
2000
Suitable for C-load
Yes
With automatic night switch-off
Yes
Mounting method
Surface mounted (plaster)
Swivelling
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Other
Surface finishing
Matt
Color
Black
RAL-number (similar)
9005
Transparent
No
Nominal voltage (V)
240
Max. switching current (resistive load) (A)
10
Operating temperature (°C)
-20 °C to 50 °C
Suitable for degree of protection (IP)
IP54
Width (mm)
The product's width without packaging.
95
Height (mm)
The product's height without packaging.
95
Depth (mm)
The product's depth without packaging.
95
