Steinel IS Motion Switch (Complete) - 034689

Notice: This product is discontinued

Discontinued

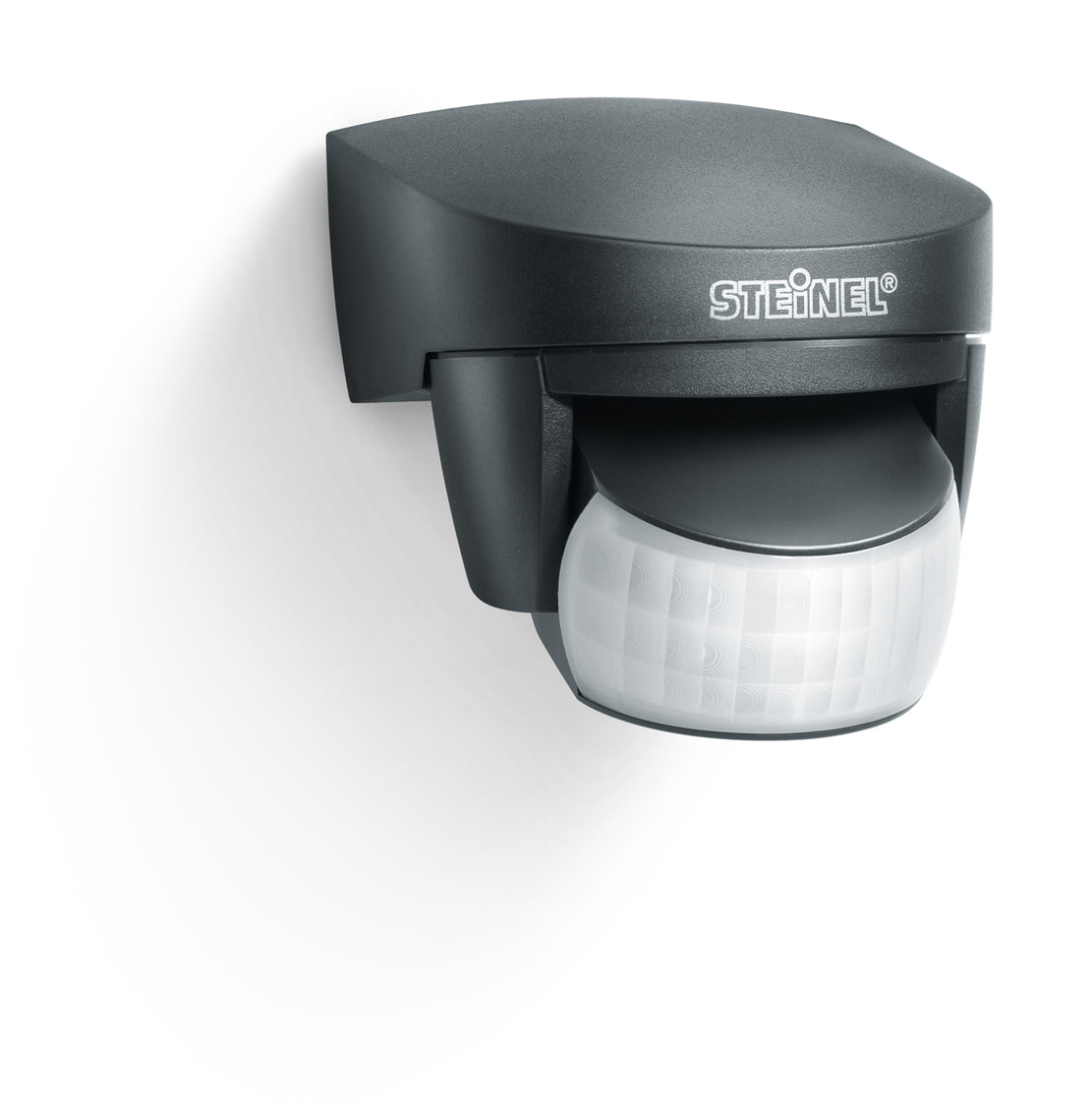

Steinel IS Motion Switch (Complete) - 034689
Steinel IS Motion Switch (Complete) - 034689
Image may vary slightly
See specifications for accurate information.
Reference: E2TAM
Brand: Steinel
Mfr. Part: 034689

Steinel IS motion switch (complete), black, surface mounted, type of motion detector, degree of protection (IP) IP54, optimal mounting height 2m, detector type passive infrared, max. Range frontal 14m, suitable for wall mounting, max. Range sideways 14m, angle range horizontal 140°.

View all

Notice: This product is discontinued

Description
Specifications

Description

Steinel IS motion switch (complete), black, surface mounted, type of motion detector, degree of protection (IP) IP54, optimal mounting height 2m, detector type passive infrared, max. Range frontal 14m, suitable for wall mounting, max. Range sideways 14m, angle range horizontal 140°.

Specifications

Model
Movement sensor
Sensor type
Passive infrared
With DALI interface
No
Constant light control
No
HVAC-control
No
Forced switch on
No
Forced switch off
No
Animal zone
No
Creep-under protection
No
Networkable
No
Optimum mounting height (m)
2
Staircase monitoring
No
Bridging switch
No
Max. transmission range sideways (m)
14
Max. transmission range frontally (m)
14
Diameter detection range on floor (m)
14
Suitable for wireless transmission
No
Remote operation
No
With remote control
No
Response value sensitivity adjustable
No
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Suitable for ceiling mounting
No
Suitable for wall mounting
Yes
Dim function with dimmer basic element
No
Mounting method
Surface mounted (plaster)
Connection type
Screwed terminal
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Other
Surface finishing
Matt
Color
Black
RAL-number (similar)
9005
Transparent
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP54
Voltage-type
AC
Frequency (Hz)
50 Hz to 60 Hz
Nominal voltage (V)
230
Min. switch-on time (s)
10
Max. duty cycle (min)
15
Switch-off delay (s)
2000
Switching-on delay (s)
0
Detection angle horizontal (°)
140 ° to 140 °
Pivoting range sensor, horizontal (°)
0 ° to 180 °
Pivoting range sensor, vertical (°)
0 ° to 90 °
Response value luminosity (lx)
2 lx to 2000 lx
Max. switching power (W)
2000
Suitable for C-load
Yes
Temperature (°C)
-20 °C to 50 °C
Number of switching zones
144
Max. starting current (A)
120
Control current (mA)
0
Substation input
No
With alarm function
No
Height (mm)
The product's height without packaging.
70
Depth (mm)
The product's depth without packaging.
95
