Stainless Steel Cross Unit For Rd 8-10mm Fl 30mm Without Intermedia - 318239

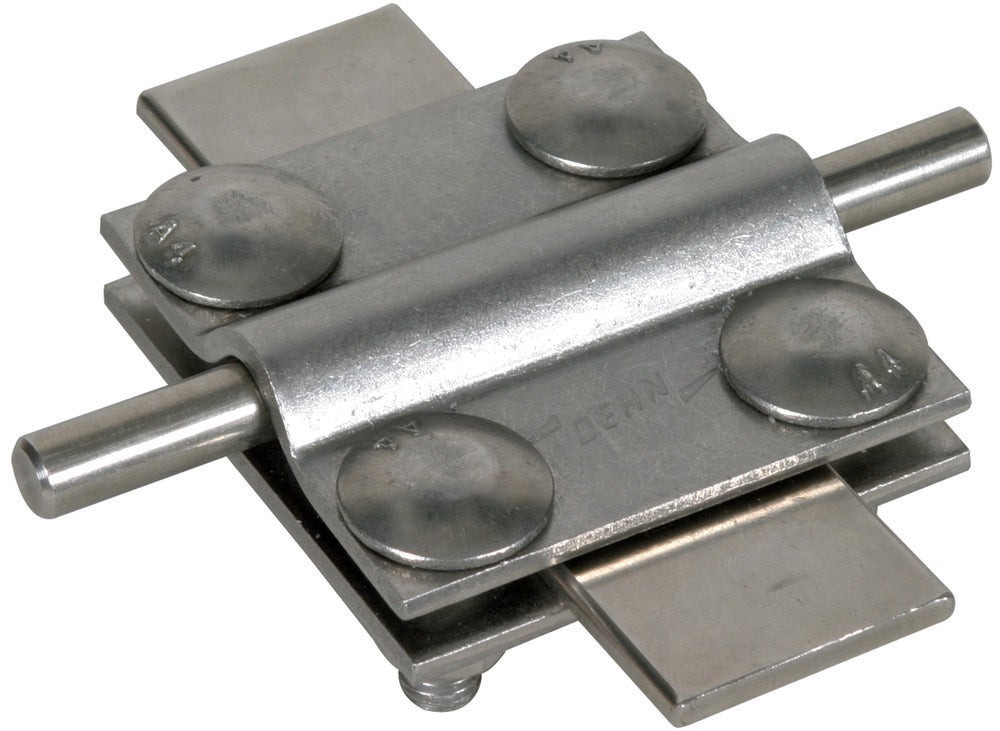

This is a Dehn connector for lightning protection, made from 316 stainless steel. It is designed for aboveground and underground connection of round conductors with diameters of 1 8 - 10mm and flat conductors with diameters of 1 30mm and 2 30mm. It features a cross coupling connection type and does not have any surface protection, leaving it untreated. It is secured using hexagonal screws and doesn't include an intermediate plate. The connector adheres to the specifications set out in EN 62561-1 and comes equipped with M8 screws.
- Regular price
- $22.99 USD
We sell only to registered businesses
Description
This is a Dehn connector for lightning protection, made from 316 stainless steel. It is designed for aboveground and underground connection of round conductors with diameters of 1 8 - 10mm and flat conductors with diameters of 1 30mm and 2 30mm. It features a cross coupling connection type and does not have any surface protection, leaving it untreated. It is secured using hexagonal screws and doesn't include an intermediate plate. The connector adheres to the specifications set out in EN 62561-1 and comes equipped with M8 screws.
