Stago CYB Wall Outlet Box (WCD Switchgear) - 5951512

Notice: This product is discontinued

Discontinued

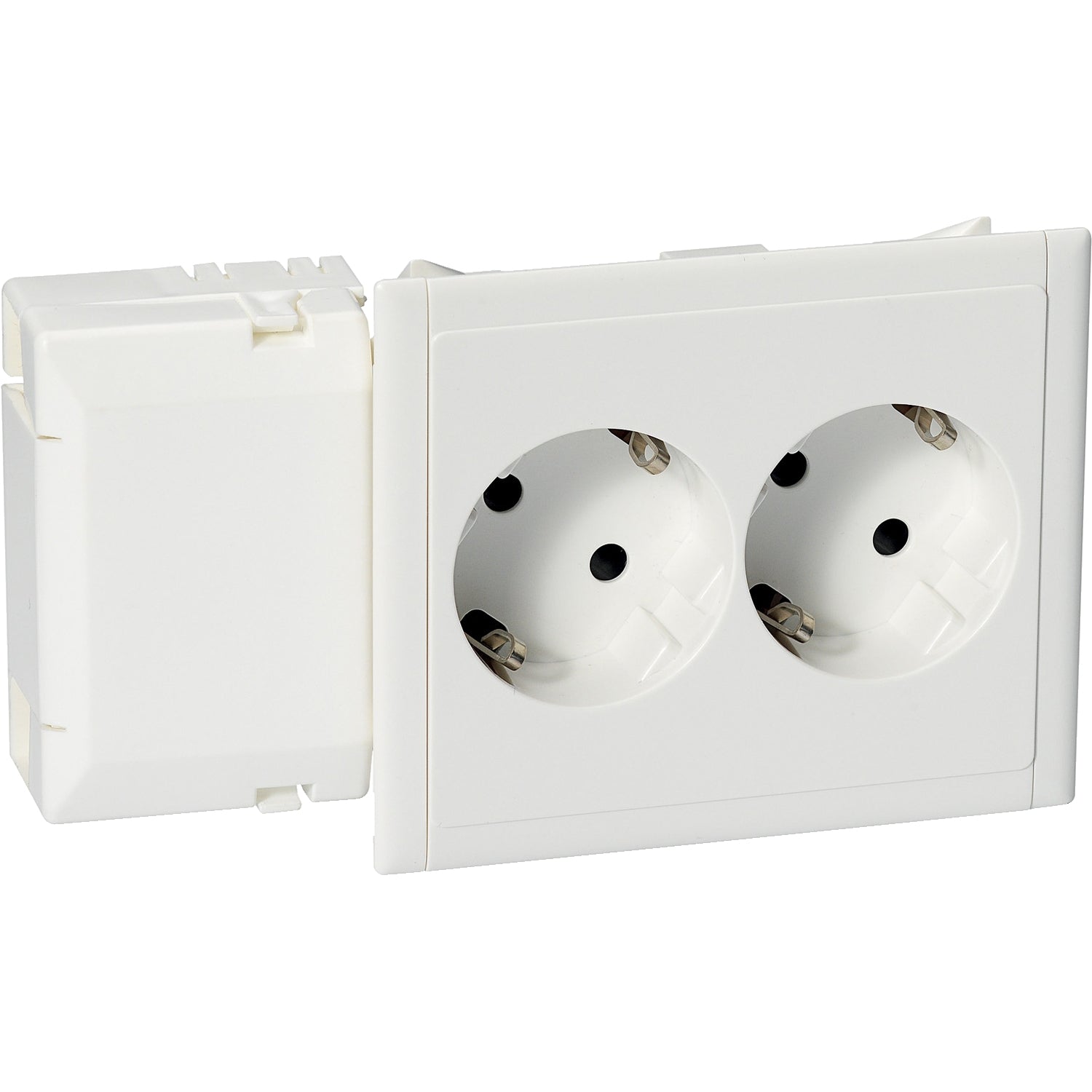

Stago CYB Wall Outlet Box (WCD Switchgear) - 5951512
Stago CYB Wall Outlet Box (WCD Switchgear) - 5951512
Image may vary slightly
See specifications for accurate information.
Reference: E2RJC
Brand: Stago
Mfr. Part: 5951512

Stago CYB socket outlet (wall socket switchmaterial), plastic, aluminum, wall channel, design rim, degree of protection (IP) IP20, cover central plate, protection contact, surface finish matt, connection type other, 1 unit, text field/description area, with increased touch protection.

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Stago CYB socket outlet (wall socket switchmaterial), plastic, aluminum, wall channel, design rim, degree of protection (IP) IP20, cover central plate, protection contact, surface finish matt, connection type other, 1 unit, text field/description area, with increased touch protection.

Downloads

Specifications

Model
Protective contact (SCHUKO)
Protective contact
Yes
Protective earth pin round
No
Number of active pins (round)
2
Number of active pins (flat)
0
With signal lamp
No
With built-in USB power supply
No
Number of units
1
Number of modules (module system)
0
Number of socket outlets switchable
0
Number of phases
1
Connection type
Other
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Color
Aluminium
RAL-number (similar)
9010
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
Yes
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
No special power supply
Mounting method
Wall duct
Type of fastening
Snap mounting (engagement)
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Metallic
Surface finishing
Matt
Anti-bacterial treatment
No
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current (A)
16
Nominal voltage (V)
250
Frequency (Hz)
50 Hz to 60 Hz
Rated fault current (mA)
0
Suitable for degree of protection (IP)
IP20
Impact strength
IK05
Width of device (mm)
52
Height of device (mm)
84
Depth of device (mm)
84
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
