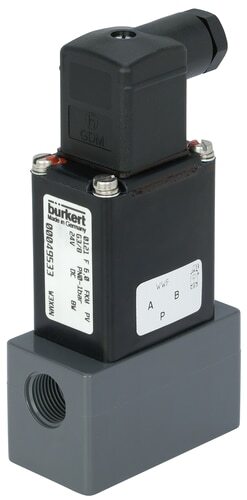

Solenoid Valve G3/8'' NC PVC EPDM 0-1bar/15psi 24VAC/DC 0121 344677

Solenoid Valve G3/8'' NC PVC EPDM 0-1bar/15psi 24VAC/DC 0121 344677
Image may vary slightly
See specifications for accurate information.
Reference: 344677
Brand: Burkert

Burkert 2/2 way solenoid valve (type 0121) with G 3/8 inch threads and a 24 V AC/DC coil. The circuit function of the solenoid valve is normally closed (voltage = open). The valve is direct operating, so no differential pressure required. Suitable for max media temperatures of 50 °C (122 °F) and a pressure range of 0 - 1 bar (15 psi). Housing of PVC with EPDM sealing and a 8 mm orifice. The Kv-value is 1000 m3/h (16670.0 l/min at dp = 1 bar water).

Note: DIN connector not included.

View all
Note: product cannot be returned
Regular price
$654.09
excl VAT

In stock +17 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 17 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 19 - 20 business days

Description
Specifications
Downloads
Related products

This is a Burkert direct operating 2/2 way solenoid valve with G 3/8 inch threads and a 24 V AC/DC coil. The valve has a PVC housing with EPDM sealing and an orifice size of 8 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure of 0 - 1 bar (15 psi) and a maximum temperature of 50 °C (122 °F). The valve has a Kv-value of 1000 m3/h, this translates to a flow rate of 16670 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 1156, which means 1156 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The PVC housing is strong and lightweight and resistant to many chemicals, acids and alkali. The EPDM (ethylene propylene diene monomer rubber) sealing is suited for neutral fluids and many chemicals, but it has poor resistance to oils and fats. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve has an IP65 rating if properly connected.

Pros:

  • Good protection against the environment thanks to the IP65 rating
  • Solenoid valves open and close very fast compared to many other valve types

Cons:

  • Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
  • The coil may get hot when energized. A well ventilated environment is recommended

Series:

The Bürkert type 0121 valve is a direct-operated, media separated pivoted armature valve with a stainless steel (316L), PTFE (teflon), PVC (polyvinyl chloride), PP (polypropylene) or PVDF (polyvinylidene fluoride) housing. The valve is available in 3/2- and 2/2-way versions. As a 3/2-way version, it can be delivered as a normally open, normally closed, distributing or mixing valve. The valve can be delivered with a diameter from DN 2 up to DN 8. Depending on the model, the valve can operate up to 6 bar. All 0121 valves come with a manual override for commissioning and testing. ATEX-approved versions are also available.

Please note: this product is made to order and can unfortunately not be returned.
