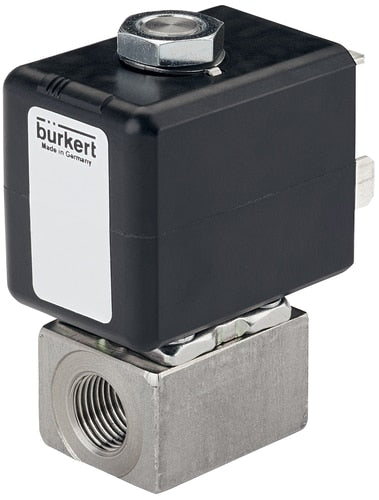

Solenoid Valve 6mm Plug-in NC PPS EPDM 0-6bar/87psi 24VDC 7011 20049681
Burkert 2/2 way solenoid valve (type 7011) with 6 mm plug-in and a 24 V DC coil. The circuit function of the solenoid valve is normally closed (voltage = open). The valve is direct operating, so no differential pressure required. Suitable for max media temperatures of 100 °C (212 °F) and a pressure range of 0 - 6 bar (87 psi). Housing of PPS with EPDM sealing and a 2 mm orifice. The Kv-value is 0.11 m3/h (1.83 l/min at dp = 1 bar water).
Note: DIN connector not included.
- Regular price
- $141.95 USD
Description
This is a Burkert direct operating 2/2 way solenoid valve with 6 mm plug-in and a 24 V DC coil. The valve has a PPS housing with EPDM sealing and an orifice size of 2 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure of 0 - 6 bar (87 psi) and a maximum temperature of 100 °C (212 °F). The valve has a Kv-value of 0.11 m3/h, this translates to a flow rate of 2 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 0, which means 0 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The EPDM (ethylene propylene diene monomer rubber) sealing is suited for neutral fluids and many chemicals, but it has poor resistance to oils and fats. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve has an IP65 rating if properly connected.
Pros:
- Good protection against the environment thanks to the IP65 rating
- Solenoid valves open and close very fast compared to many other valve types
Cons:
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
- The coil may get hot when energized. A well ventilated environment is recommended
Series:
The Bürkert type 7011 is a versatile direct-acting plunger valve that can be used in a variety of applications. Its welded stopper and core guide tube enhance pressure resistance and guarantee leak-tightness. The valve is customizable with different housing and seal materials to meet specific needs. The valve's flange variant (SFB) allows for space-efficient arrangement on a multiple manifold, and it also includes DVGW EN 161 and explosion-proof variants. Flexible hose connections can be made using push-in fittings. When combined with a plug conforming to DIN EN 175301-803 shape B, the valves offer IP65 protection. The type 7011 valve is ideal for small valves up to DN 2.4 due to its compact design and slipped-over coil system. This valve can be easily mounted on a flange or manifold, making it convenient for various systems. Additionally, explosion-proof variants are available for safety requirements.
Please note: this product is made to order and can unfortunately not be returned.
