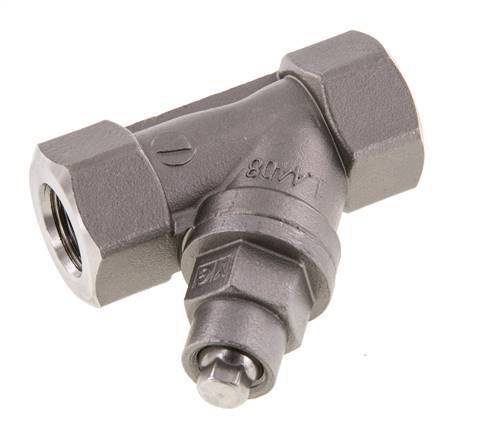

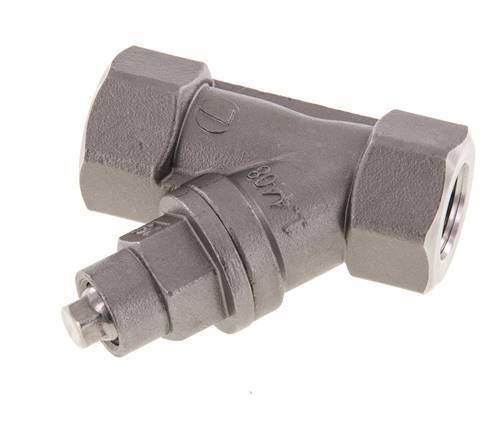

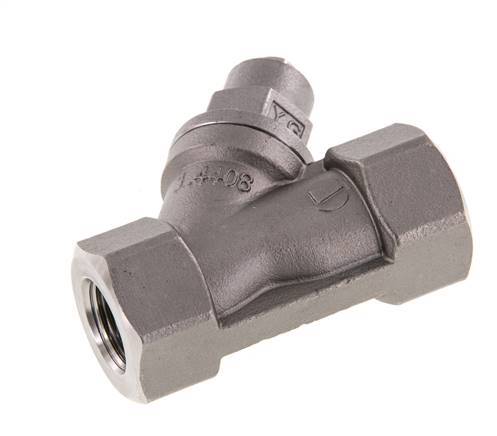

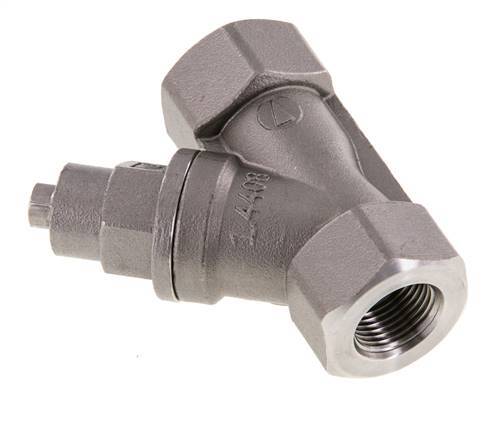

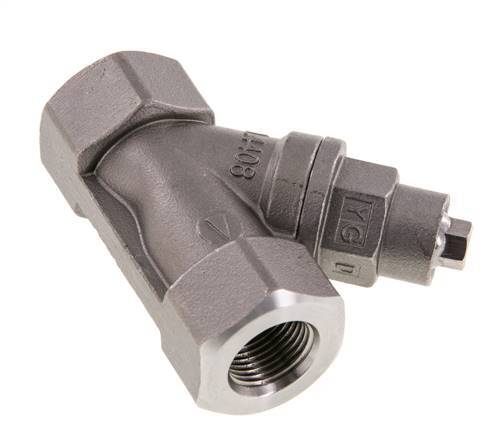

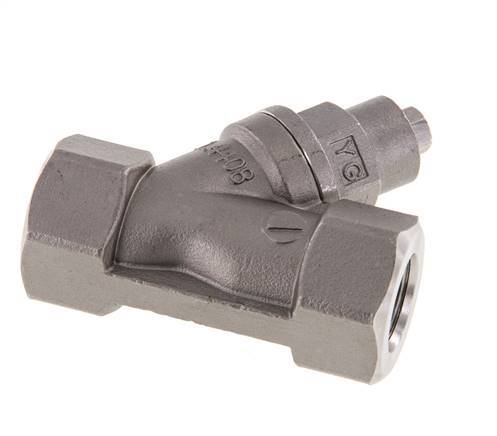

G3/8'' Y-Strainer 0.8mm 20-Mesh Stainless Steel PTFE 40bar/580psi

Stainless steel Y-strainer with G 3/8 inch female threads and a stainless steel mesh with a 0.8 mm filter size. For media up to 40 bar (580 psi). The temperature range is between -20 °C and 200 °C (-4 to 392 °F). Y type strainers are to be used in a single flow direction. The installation orientation is correct when the protruding leg (containing the filter) points in the same direction as the flow direction. Additionally, an arrow on the housing indicates the installation direction. The residue collects in the filter. The filter can be inspected and cleaned by unscrewing the sealing cap. Particle filters are recommended to install in front of components that are sensitive to small particles, such as solenoid valves or pumps. The strainer filter size defines the maximum size of particles that can go through. The Y strainer filter mesh size selection is guided by the requirements of the downline equipment. Correct sizing is important. If the filtration size is too large, then unfiltered debris will move downstream and could affect the performance of the downstream equipment. If the filtration size is too small, the pressure drop will increase and due to the filtration size the filter will require more frequent cleaning. Sensitive elements such as generic solenoid valves will operate only with very clean fluids. It is therefore recommended to always install a filter upstream of these components to reduce the risk of particles getting through. For this kind of application, a filter mesh size of 0.5 mm or smaller is recommended.

Pros:

• High lifespan thanks to the corrosion resistant stainless steel housing (casted 316)
• Thanks to the Y-shaped design, there is a smaller pressure drop when compared to a T-shaped design
• Easy maintenance and cleaning thanks to the removable sealing cap

Cons:

• The 0.8 mm filter size might be too coarse for some applications, like solenoid valves

SLS series

The SLS stainless steel Y-strainers are available from G 1/4 inch up to G 2 inch. The standard mesh filter size is 0.8 mm. Optionally, a fine filter size of 0.25 mm is available. All filters have a stainless-steel housing (1.4408) and filter (1.4401). The length of the filter is according to DIN 3202-M8. Y-filters are often installed to protect pumps, valves and other components from debris in the fluid. Can be used for a wide range of liquids and gases, including aggressive and corrosive media.
