Siemens Text Panel - 6ED10554MH080BA1

Siemens Text Panel - 6ED10554MH080BA1
Siemens Text Panel - 6ED10554MH080BA1
Image may vary slightly
See specifications for accurate information.
Reference: E27GV
Brand: Siemens
Mfr. Part: 6ED10554MH080BA1

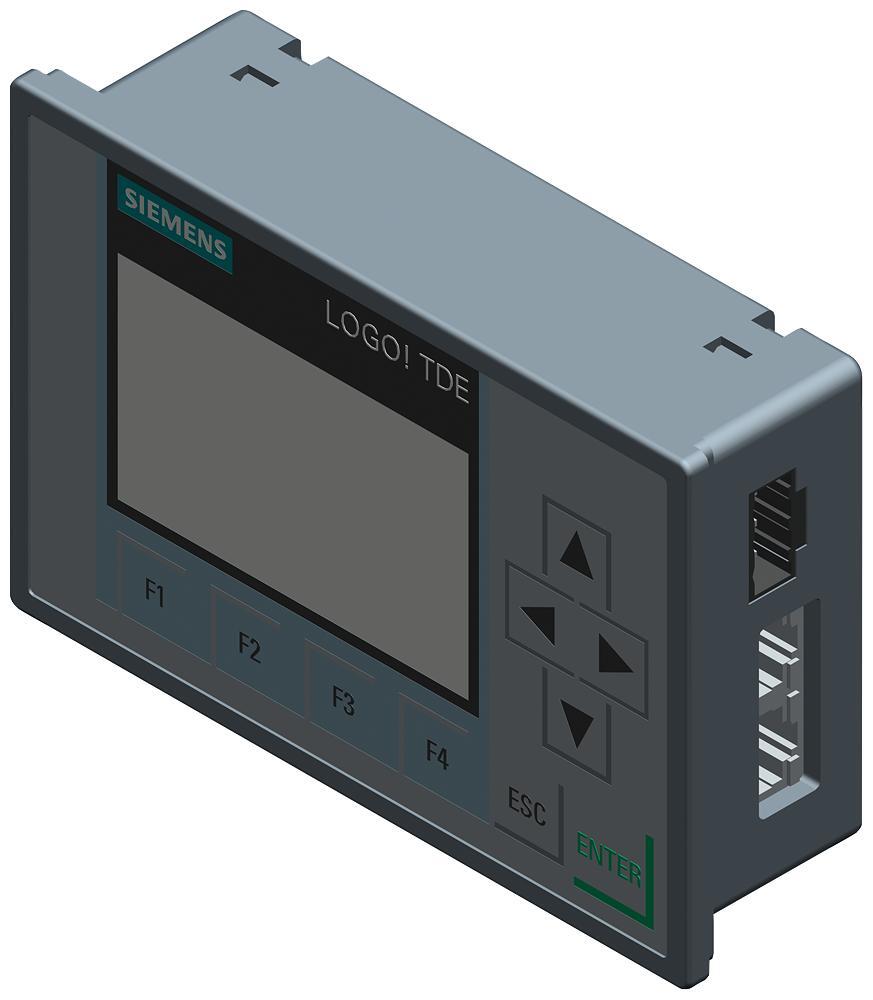

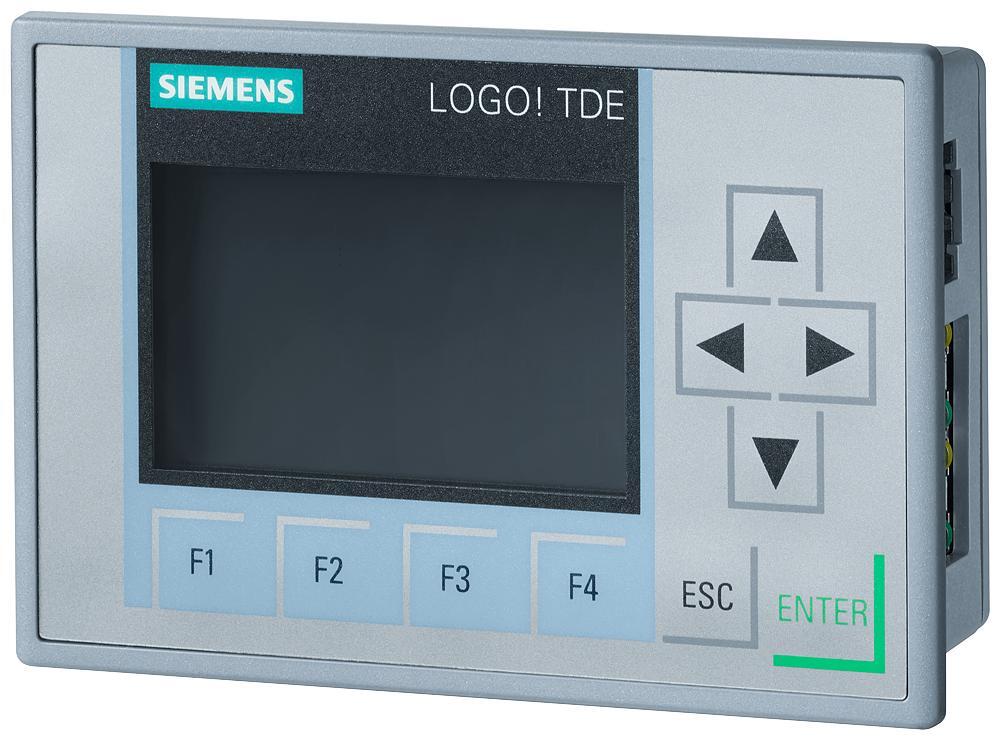

Siemens led text display module for use with logo series, 128.2mm - logo td series - 6ed1055-4mh08-0ba1. Use this display module from siemens to monitor and control your industrial machinery. You can connect it to logic modules from the logo series via the dual ethernet ports at its rear, making it simple to create a complete setup for smooth data transfer. The lcd (liquid crystal display) screen shows six lines with a maximum of twenty characters per line for easy-to-read results.

View all
$229.81
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 18 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Siemens led text display module for use with logo series, 128.2mm - logo td series - 6ed1055-4mh08-0ba1. Use this display module from siemens to monitor and control your industrial machinery. You can connect it to logic modules from the logo series via the dual ethernet ports at its rear, making it simple to create a complete setup for smooth data transfer. The lcd (liquid crystal display) screen shows six lines with a maximum of twenty characters per line for easy-to-read results.

Downloads

Product data sheet (EN)
pdf
Download
Brochure (EN)
pdf
Download

Specifications

Supply voltage AC 50 Hz (V)
20.4 V to 26.4 V
Supply voltage AC 60 Hz (V)
20.4 V to 26.4 V
Supply voltage DC (V)
10.2 V to 28.8 V
Voltage type of supply voltage
AC/DC
Number of HW-interfaces industrial Ethernet
2
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Type of display
LCD with background illumination
Number of display lines
6
Number of characters per line
20
Max. character height, display (mm)
0
Useful project memory/user memory (kByte)
0
With numeric keyboard
No
With alpha numeric keyboard
No
Number of function buttons, programmable
4
Number of buttons with LED
0
Number of system buttons
6
With message indication
Yes
With message system (incl. buffer and confirmation)
No
Process value representation (output) possible
Yes
Process default value (input) possible
Yes
With recipes
No
Number of password levels
1
With printer output
No
Number of online languages
2
Degree of protection (IP), front side
IP65
Graphic objects presentable
No
Suitable for safety functions
No
Width of the front (mm)
128.2
Height of the front (mm)
86
Built-in depth (mm)
38.7
