Siemens SIMATIC Graphic Panel - 6AV21242DC010AX0

Notice: This product is discontinued

Discontinued
Siemens SIMATIC Graphic Panel - 6AV21242DC010AX0
Siemens SIMATIC Graphic Panel - 6AV21242DC010AX0

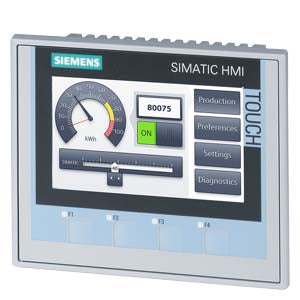

Image may vary slightly
See specifications for accurate information.
Reference: E2FXX
Brand: Siemens
Mfr. Part: 6AV21242DC010AX0

SIMATIC HMI KTP400 Comfort, Comfort Panel, key/touch operation, 4" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 4 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads

Description

SIMATIC HMI KTP400 Comfort, Comfort Panel, key/touch operation, 4" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 4 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11.

Downloads

Specifications

Supply voltage DC (V)
19.2 V to 28.8 V
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
1
Number of interfaces PROFINET
1
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
1
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
1
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With SW interfaces
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Type of display
TFT
With colour display
Yes
Number of colours of the display
16777216
Number of grey-scales/blue-scales of display
0
Screen diagonal (inch)
4.3
Number of pixels, horizontal
480
Number of pixels, vertical
272
With numeric keyboard
Yes
With alpha numeric keyboard
Yes
Number of function buttons, programmable
4
With message indication
Yes
With recipes
Yes
Number of password levels
50
With printer output
Yes
Number of online languages
32
Additional software components, loadable
Yes
Degree of protection (IP), front side
IP65
Rail mounting possible
No
Wall mounting/direct mounting
No
Suitable for safety functions
No
Width of the front (mm)
140
Height of the front (mm)
116
