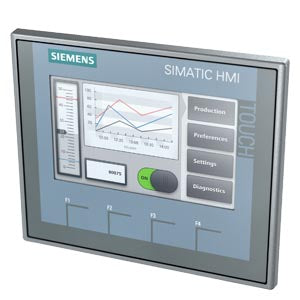

Siemens SIMATIC Graphic Panel - 6AV21232DB030AX0

Siemens SIMATIC Graphic Panel - 6AV21232DB030AX0
Siemens SIMATIC Graphic Panel - 6AV21232DB030AX0
Image may vary slightly
See specifications for accurate information.
Reference: E35VS
Brand: Siemens
Mfr. Part: 6AV21232DB030AX0

Siemens simatic hmi panel, 4.3in - ktp 44 series - 6av2123-2db03-0ax0. Optimise the monitoring and operation of mechanical engineering applications with this simatic panel from siemens. It includes a basic hmi (human-machine interface) functionality to improve your processes and enhance productivity. Its wide-screen design offers up to 40% more visualisation space, and its high-resolution display ensures it's easy to read. As the brightness is dimmable, you can adjust the unit's light to suit your needs.

View all
$534.59
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Siemens simatic hmi panel, 4.3in - ktp 44 series - 6av2123-2db03-0ax0. Optimise the monitoring and operation of mechanical engineering applications with this simatic panel from siemens. It includes a basic hmi (human-machine interface) functionality to improve your processes and enhance productivity. Its wide-screen design offers up to 40% more visualisation space, and its high-resolution display ensures it's easy to read. As the brightness is dimmable, you can adjust the unit's light to suit your needs.

Downloads

Product data sheet (EN)
pdf
Download
Brochure (EN)
pdf
Download

Specifications

Supply voltage AC 50 Hz (V)
0 V to 0 V
Supply voltage AC 60 Hz (V)
0 V to 0 V
Supply voltage DC (V)
19.2 V to 28.8 V
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
1
Number of interfaces PROFINET
1
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
1
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With SW interfaces
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Type of display
TFT
With colour display
Yes
Number of colours of the display
65536
Number of grey-scales/blue-scales of display
0
Screen diagonal (inch)
4.3
Number of pixels, horizontal
480
Number of pixels, vertical
272
Useful project memory/user memory (kByte)
10000
With numeric keyboard
Yes
With alpha numeric keyboard
Yes
Number of function buttons, programmable
4
Number of buttons with LED
0
Number of system buttons
0
With message indication
Yes
With message system (incl. buffer and confirmation)
Yes
Process value representation (output) possible
Yes
Process default value (input) possible
Yes
With recipes
Yes
Number of password levels
50
With printer output
No
Number of online languages
10
Additional software components, loadable
No
Degree of protection (IP), front side
IP65
Rail mounting possible
No
Wall mounting/direct mounting
No
Suitable for safety functions
No
Width of the front (mm)
141
Height of the front (mm)
116
Built-in depth (mm)
33
