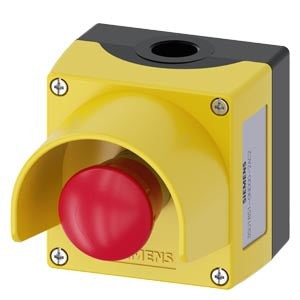

Siemens Pushbutton Box Complete - 3SU18510ND002AC2
Siemens emergency stop pushbutton. The siemens sirius act series emergency stop pushbutton has a yellow round style head with the diameter of 40mm. The housing is made of metal and the pushbutton is made from plastic. This pushbutton has a current rating of 10a and a voltage rating of 500vac/vdc. Features and benefits. 1no/2nc contact configuration. Rotate to unlatch reset method. Panel mount with cut-out diameter of 22mm. Comes with protective collar. Enclosure top part yellow with a protective collar. Screw terminal. Floor mount. 1xm20 each on top and bottom. Certifications. Ip66 rated.
- Regular price
- $155.57 USD
We sell only to registered businesses
Description
Enclosure for command devices; 22mm round, enclosure material metal, top part yellow, with protective collar, comprising of a single control point made of metal. It includes an EMERGENCY STOP mushroom pushbutton, red in color, 40mm in size, designed to rotate to unlatch. It has 3 contact points - 1 NO, 1 NC, 1 NC, screw terminal, and can be mounted on the floor. The enclosure also contains a M20 mount on both the top and bottom.
Under the SIRIUS ACT brand, Siemens offers a unique portfolio of pushbuttons and signaling devices. This range includes global product approvals in three modern design lines of sturdy genuine metal and high-quality plastic. An innovative snap-on concept simplifies the installation process, enabling it to be done with one hand and without any special tools. The full twist prevention feature eliminates the need for grooved holes as mounting points.
These rugged devices are designed for use in both industrial and outdoor environments, thanks to their high degree of protection. They can even be cleaned with a high-pressure jet. These devices are resistant to dust, oils, and caustic solutions, ensuring reliable operation.
In addition to standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This feature can help reduce wiring time and effort, minimize error sources, and provide more flexibility.
Our online Configurator provides convenient support when selecting and ordering individual devices, enclosures, and labels. Extensive documentation is available including a manual, 3D data, and a terminal diagram.
- Versions available include yellow/gray, plastic/metal, 1-6 command points, and empty enclosure/pre-equipped.
- Optionally, it comes with an AS-Interface connection.
- SIRIUS ACT - is a perfect embodiment of performance in action for control and signaling. It is simple to mount, robust, and simply perfect.
