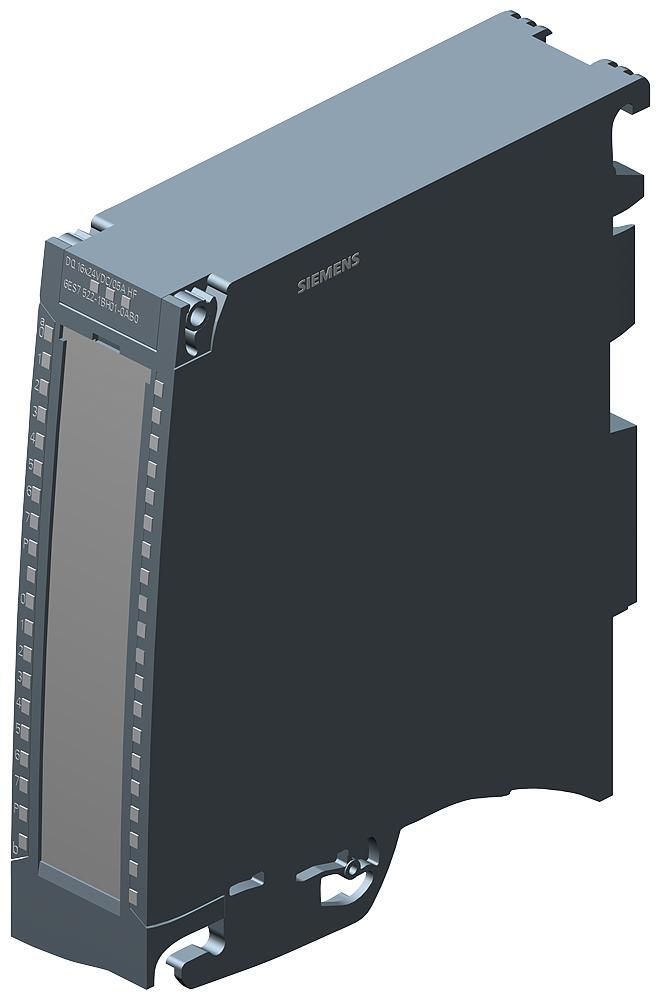

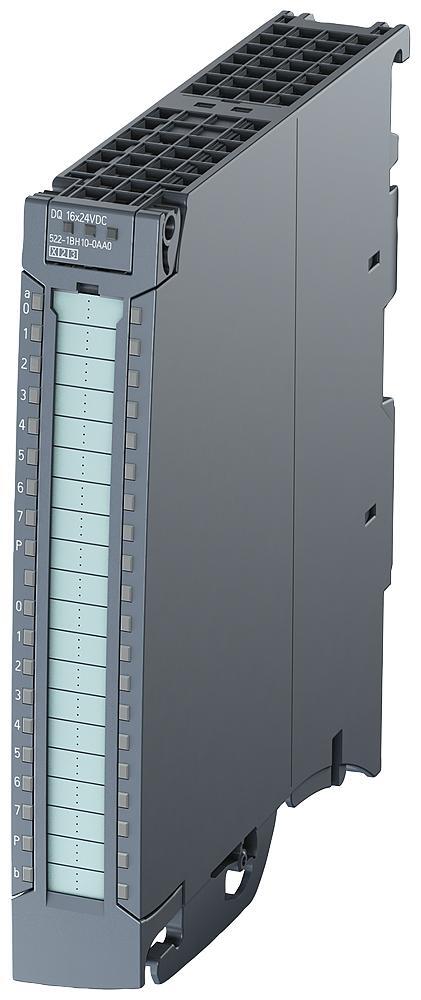

Siemens PLC Digital Input And Output Module - 6ES75221BH010AB0
The siemens digital output module 16x24 v dc/0.5 a hf belongs to simatic s7-1500 series with dq, mso and integrated operating cycle counter operating modes. It has diagnostics function. Operating temperature range is from 0 °c to 60 °c. 230 g weight.
- Regular price
- $331.66 USD
We sell only to registered businesses
Description
SIMATIC S7-1500 is a digital output module DQ16x24 V DC/0.5A HF. It features 16 channels in groups of 8 and 4 A per group. It also contains a single-channel diagnostic feature and a switching cycle counter for connected actuators. The module also supports safety-oriented shutdown of load groups up to SIL2 in accordance with EN IEC 62061:2021 and Category 3 / PL d in accordance with EN ISO 13849-1:2015. Front connectors (screw terminals or push-in) need to be ordered separately.
SIMATIC ET 200MP is a modular, scalable I/O system with IP20 for universal use. It offers the same system advantages as the S7-1500. This system permits the shortest bus cycle times and fastest response times, even with large volumes of data.
The distributed I/O system is particularly easy to install, wire, and commission. With its scalable design, you can tailor the IO station exactly to the on-site requirements. The wide range of signal modules ensures the scalable configuration of an ET 200MP station.
A large number of digital and analog input and output modules are available, ensuring the universal applicability of the system.
