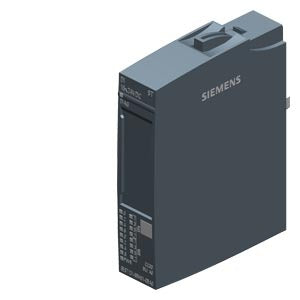

Siemens Fieldbus Decentralized Peripheral - Digital Input And Output Module - 6ES71316BH010BA0

Siemens Fieldbus Decentralized Peripheral - Digital Input And Output Module - 6ES71316BH010BA0
Siemens Fieldbus Decentralized Peripheral - Digital Input And Output Module - 6ES71316BH010BA0
Image may vary slightly
See specifications for accurate information.
Reference: E2RUX
Brand: Siemens
Mfr. Part: 6ES71316BH010BA0

The siemens digital input module 16x 24V DC standard which belongs to simatic et 200sp series is suitable for bu type a0 with di operating mode. It has cc00 colour code. It has diagnostics function. Operating temperature range for horizontal installation is from -30 °c to 60 °c and for vertical installation the range is -30 °c to 50 °c. 28 g weight.

View all
$117.10
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 34 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

The siemens digital input module 16x 24V DC standard which belongs to simatic et 200sp series is suitable for bu type a0 with di operating mode. It has cc00 colour code. It has diagnostics function. Operating temperature range for horizontal installation is from -30 °c to 60 °c and for vertical installation the range is -30 °c to 50 °c. 28 g weight.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Supply voltage DC (V)
19.2 V to 28.8 V
Voltage type of supply voltage
DC
Number of digital inputs
16
Number of digital outputs
0
Digital inputs configurable
Yes
Digital outputs configurable
No
Input current at signal 1 (mA)
2.5
Permitted voltage at input (V)
-30 V to 30 V
Type of voltage (input voltage)
DC
Type of digital output
None
Permitted voltage at output (V)
0 V to 0 V
Type of output voltage
DC
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces USB
0
Number of HW-interfaces other
0
With optical interface
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Time delay at signal exchange (ms)
0.05 ms to 20 ms
Fieldbus connection over separate bus coupler possible
Yes
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Front built-in possible
Yes
Rack-assembly possible
Yes
Suitable for safety functions
No
Performance level (EN ISO 13849-1)
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety dust
None
Width (mm)
The product's width without packaging.
15
Height (mm)
The product's height without packaging.
73
Depth (mm)
The product's depth without packaging.
58
