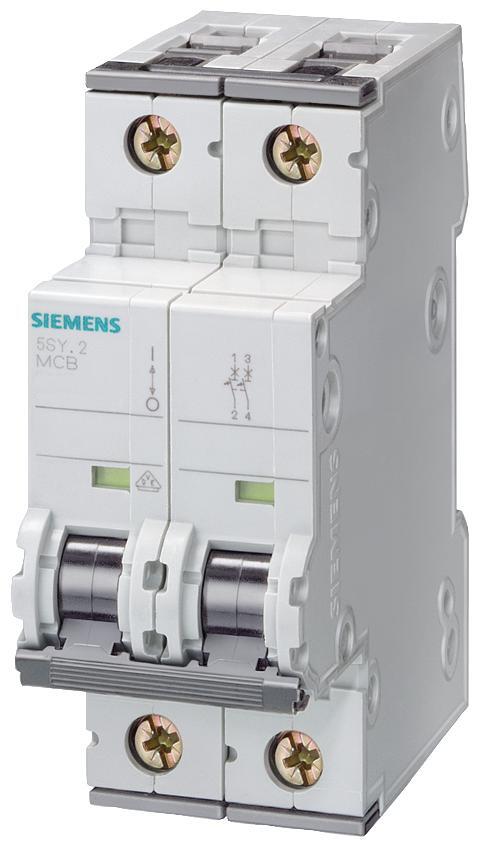

Siemens 5SY6 Circuit Breaker - 5SY65017

Siemens 5SY6 Circuit Breaker - 5SY65017
Siemens 5SY6 Circuit Breaker - 5SY65017
Image may vary slightly
See specifications for accurate information.
Reference: E326X
Brand: Siemens
Mfr. Part: 5SY65017

Siemens 5SY6 circuit breaker, tripping characteristic C, co-switching neutral, nom. (measuring) current 1A, voltage type AC, 2 poles (total), width in module units 2, secondary device possible, connectable conductor cross-section duck 0.75 - 35mm², 1 protected poles, nom. (measuring) voltage 230V.

View all
$61.67
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 45 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Siemens 5SY6 circuit breaker, tripping characteristic C, co-switching neutral, nom. (measuring) current 1A, voltage type AC, 2 poles (total), width in module units 2, secondary device possible, connectable conductor cross-section duck 0.75 - 35mm², 1 protected poles, nom. (measuring) voltage 230V.

Downloads

Specifications

Built-in depth (mm)
70
Release characteristic
C
Number of poles (total)
2
Number of protected poles
1
Rated insulation voltage Ui (V)
250
Rated impulse withstand voltage Uimp (kV)
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA)
6
Voltage-type
AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA)
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA)
30
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA)
30
Frequency (Hz)
50 Hz to 50 Hz
Current limiting class
3
Flush-mounted installation
No
Concurrently switching neutral conductor
Yes
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
2
Connectable conductor cross section multi-wired (mm²)
0.75 mm² to 35 mm²
Connectable conductor cross section solid-core (mm²)
0.75 mm² to 35 mm²
