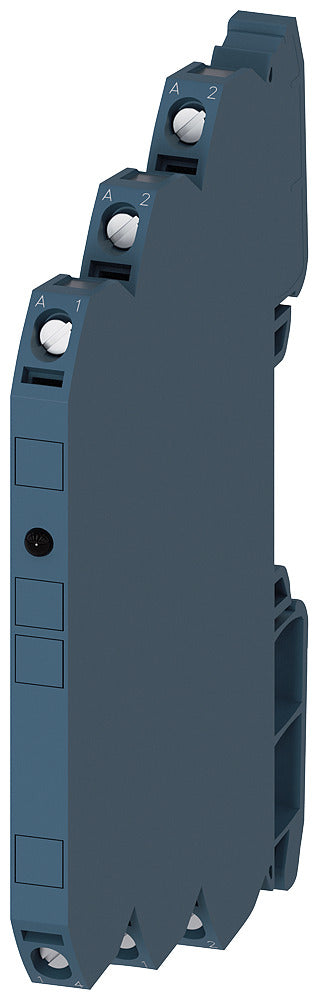

Siemens 3RQ3018 Output Coupling Relay 24V AC/DC - 3RQ30181AB00
Notice: This product will be discontinued in the future
Compact SIRIUS 3RQ3 output coupling relay featuring a single changeover contact rated for 6A thermal current at 24V AC/DC. Designed for electrical isolation, signal amplification, and adjustment between controller and I/O systems. Features a 6.2mm width with screw terminals and supports DIN rail mounting. Operating temperature range spans -25°C to +60°C with 300V isolation voltage.
Notice: This product will be discontinued in the future
Description
Compact SIRIUS 3RQ3 output coupling relay featuring a single changeover contact rated for 6A thermal current at 24V AC/DC. Designed for electrical isolation, signal amplification, and adjustment between controller and I/O systems. Features a 6.2mm width with screw terminals and supports DIN rail mounting. Operating temperature range spans -25°C to +60°C with 300V isolation voltage.
Pros:
- Ultra-compact 6.2mm width design
- Versatile 24V AC/DC operation
- Fast wiring with bridging capability
- Multiple inscription areas for clear identification
