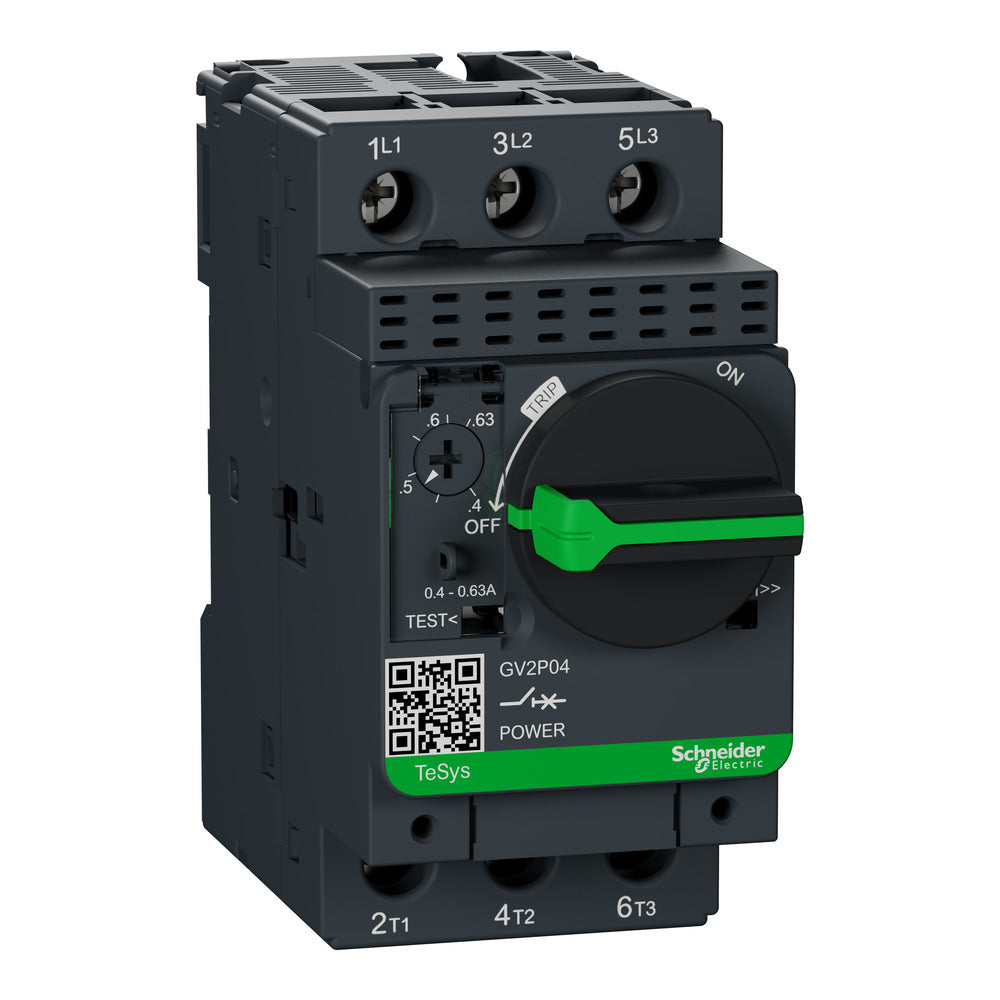

Schneider TeSys GV2P04 Motor Circuit Breaker 0.4-0.63A - GV2P04

Schneider TeSys GV2P04 Motor Circuit Breaker 0.4-0.63A - GV2P04
Schneider TeSys GV2P04 Motor Circuit Breaker 0.4-0.63A - GV2P04
Reference: E3VBU
Brand: Schneider Electric
Mfr. Part: GV2P04

Three-pole motor circuit breaker with thermal-magnetic protection, rated for 0.63A/690V, suitable for 0.12-0.18kW@400V three-phase motor applications. Features adjustable thermal range of 0.4-0.63A, magnetic trip at 13xIn, and high breaking capacity of 100kA@400V. Includes screw terminal connections and rotary handle control rated for 100,000 AC-3 cycles. Multi-standard certified including IEC, UL, CSA, CCC, EAC, Marine, and ATEX.

View all
$85.70 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 39 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

Three-pole motor circuit breaker with thermal-magnetic protection, rated for 0.63A/690V, suitable for 0.12-0.18kW@400V three-phase motor applications. Features adjustable thermal range of 0.4-0.63A, magnetic trip at 13xIn, and high breaking capacity of 100kA@400V. Includes screw terminal connections and rotary handle control rated for 100,000 AC-3 cycles. Multi-standard certified including IEC, UL, CSA, CCC, EAC, Marine, and ATEX.

Pros:

  • High breaking capacity of 100kA at 400V
  • 100,000 cycle AC-3 operational durability
  • Comprehensive international certifications
  • Adjustable thermal protection range

Specifications

Overload release current setting
0.4..0.63 A
Adjustment range undelayed short-circuit release
8..8 A
With thermal protection
Yes
Phase failure sensitive
Yes
Switch off technique
Thermomagnetic
Rated operating voltage
690..690 V
Rated permanent current Iu
0.63 A
Rated operation power at AC-3, 230 V
0.09 kW
Rated operation power at AC-3, 400 V
0.18 kW
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Device construction
Complete device in housing
With integrated auxiliary switch
No
With integrated under voltage release
No
Number of poles
3
Rated short-circuit breaking capacity lcu at 400 V, AC
100 kA
Degree of protection (IP)i
IP20
Heighti
89 mm
Widthi
44.5 mm
Depthi
97 mm
