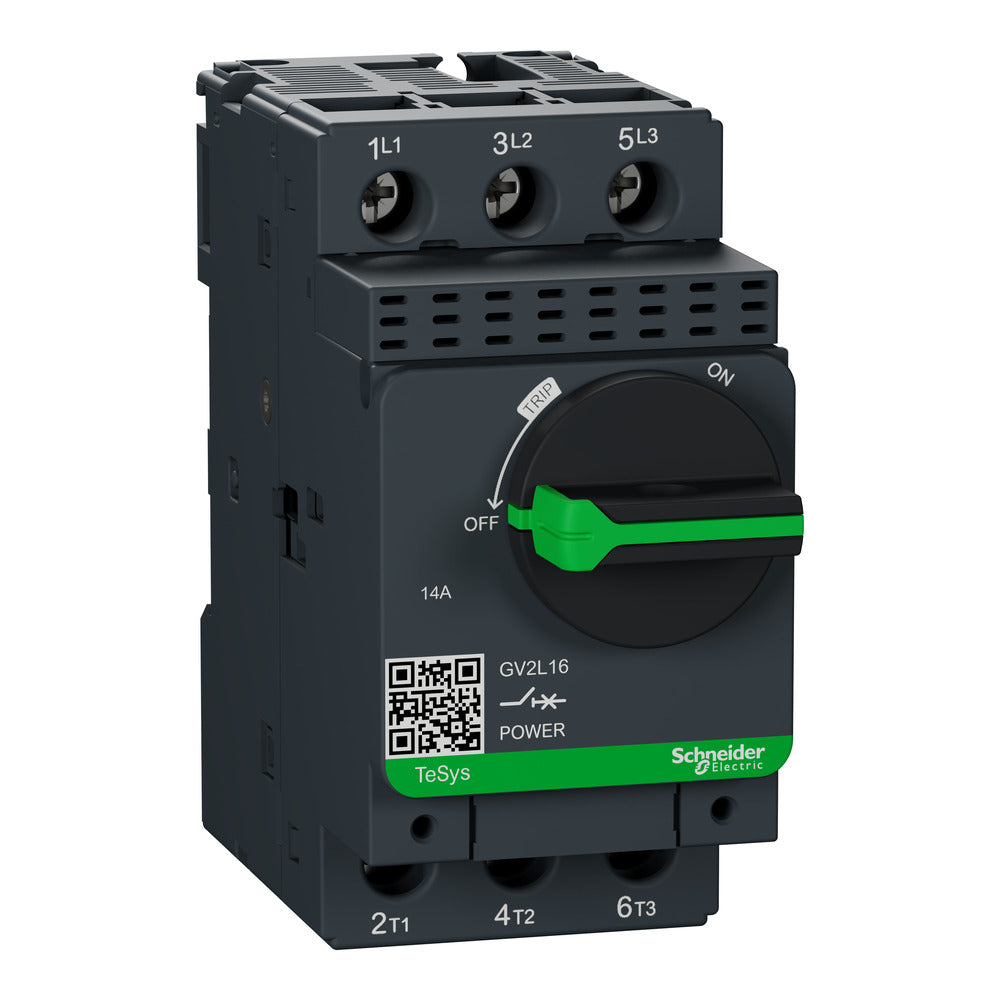

Schneider TeSys GV2L16 14A Motor Circuit Breaker - GV2L16

Schneider TeSys GV2L16 14A Motor Circuit Breaker - GV2L16
Schneider TeSys GV2L16 14A Motor Circuit Breaker - GV2L16
Reference: E3TXF
Brand: Schneider Electric
Mfr. Part: GV2L16

Three-pole magnetic circuit breaker rated at 14A/690V designed for 5.5kW@400V three-phase motor applications. Features magnetic protection with 13xIn trip level and high breaking capacity of 50kA@400V. Includes screw terminal connections and rotary start-stop control rated for 100,000 AC-3 cycles. Compatible with LRD16 thermal overload relay for complete motor protection.

View all
$81.23 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

Three-pole magnetic circuit breaker rated at 14A/690V designed for 5.5kW@400V three-phase motor applications. Features magnetic protection with 13xIn trip level and high breaking capacity of 50kA@400V. Includes screw terminal connections and rotary start-stop control rated for 100,000 AC-3 cycles. Compatible with LRD16 thermal overload relay for complete motor protection.

Pros:

  • High breaking capacity of 50kA at 400V
  • Rated for 100,000 AC-3 operating cycles
  • Multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine)
  • Green Premium compliant (RoHS/REACh)

Specifications

Adjustment range undelayed short-circuit release
14..14 A
With thermal protection
No
Phase failure sensitive
Yes
Switch off technique
Magnetic
Rated operating voltage
690..690 V
Rated permanent current Iu
14 A
Rated operation power at AC-3, 230 V
3 kW
Rated operation power at AC-3, 400 V
5.5 kW
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Device construction
Complete device in housing
With integrated auxiliary switch
No
With integrated under voltage release
No
Number of poles
3
Rated short-circuit breaking capacity lcu at 400 V, AC
50 kA
Degree of protection (IP)i
IP20
Heighti
89 mm
Widthi
45 mm
Depthi
97 mm
