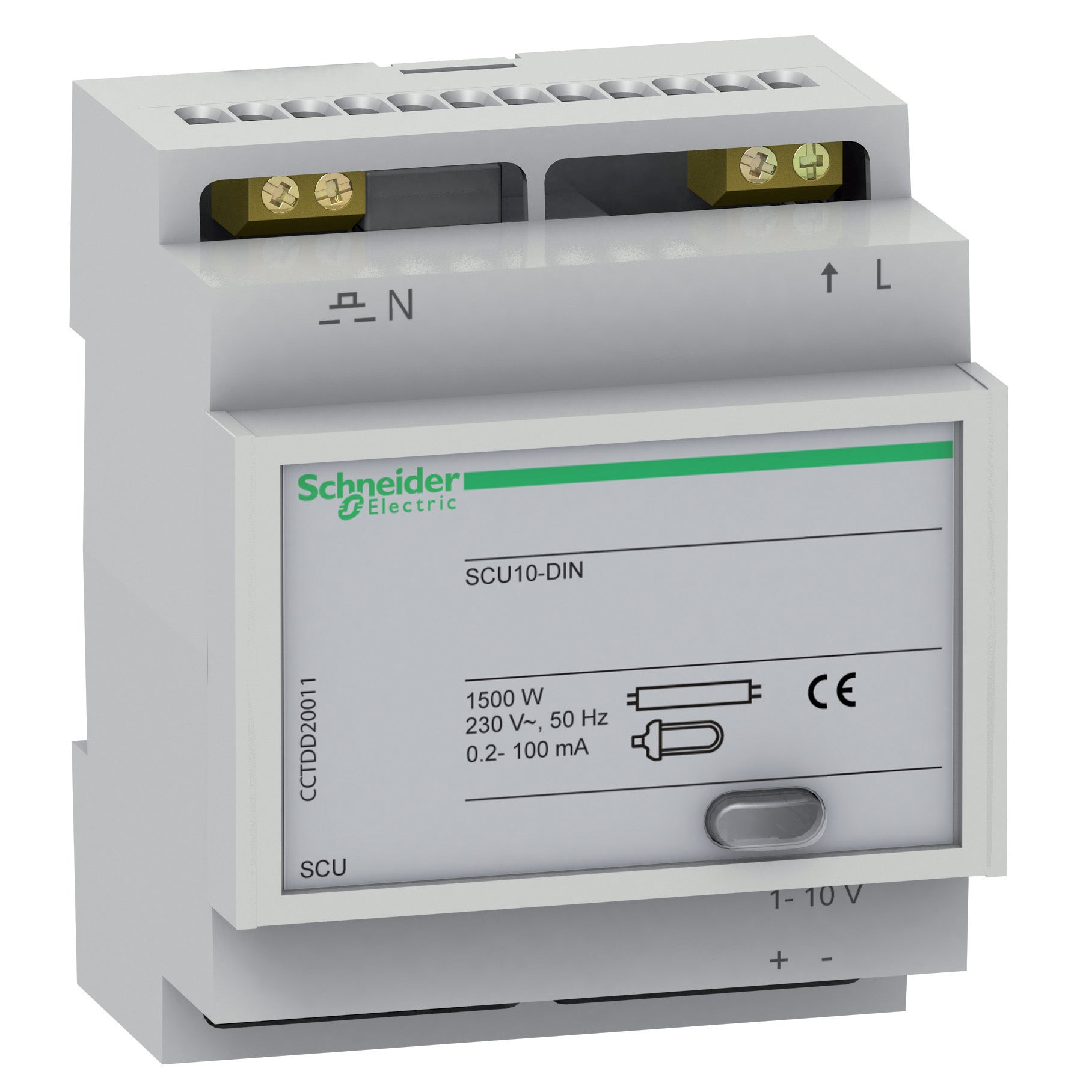

Schneider Electric SCU10-DIN 1-10V 4 Mod Dimmer - CCTDD20011

Schneider Electric SCU10-DIN 1-10V 4 Mod Dimmer - CCTDD20011
Schneider Electric SCU10-DIN 1-10V 4 Mod Dimmer - CCTDD20011
Image may vary slightly
See specifications for accurate information.
Reference: E3K2Y
Brand: Schneider Electric
Mfr. Part: CCTDD20011

The Schneider Electric M is a centralized control system for buildings. With dimensions of 72x62x85mm, this device features one dimming function, one channel, and one universal dimming channel. It has an IP20 degree of protection and a width of 4 module units. The central function is OFF. Each channel has a dimming capacity of up to 1500W and it is capable of being mounted on a DIN-rail. The SCU10-DIN is a remote-controllable dimmer that operates within a 1-10V range.

View all
Note: product cannot be returned
$148.39
excl VAT
In stock +21 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 21 days. Up to 20 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 23 - 24 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Schneider Electric M is a centralized control system for buildings. With dimensions of 72x62x85mm, this device features one dimming function, one channel, and one universal dimming channel. It has an IP20 degree of protection and a width of 4 module units. The central function is OFF. Each channel has a dimming capacity of up to 1500W and it is capable of being mounted on a DIN-rail. The SCU10-DIN is a remote-controllable dimmer that operates within a 1-10V range.

Downloads

Specifications

Mounting method
DIN rail
Function
Dimmer
Central function OUT
Yes
Group switch
No
Panic function
No
Presence simulation
No
Stair light and forewarn
No
Castor function, number of channels
0
Number of universal dim channels
1
Number of dimmer functions
1
Current surge function, number of channels
0
Roller shutter-/sun protection control, number of channels
0
Weekly program
No
Astro program
No
Number of channels
1
Module expansion up to max. number of channels
0
Control voltage 1 (V)
12 V to 30 V
Type of control voltage 1
Other
Rated current (A)
6
Dim capacity per channel (W)
1500
Rated voltage (V)
230 V to 230 V
Rated frequency (Hz)
50 Hz to 60 Hz
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Width in number of modular spacings
4
Width (mm)
The product's width without packaging.
72
Height (mm)
The product's height without packaging.
85
Depth (mm)
The product's depth without packaging.
62
