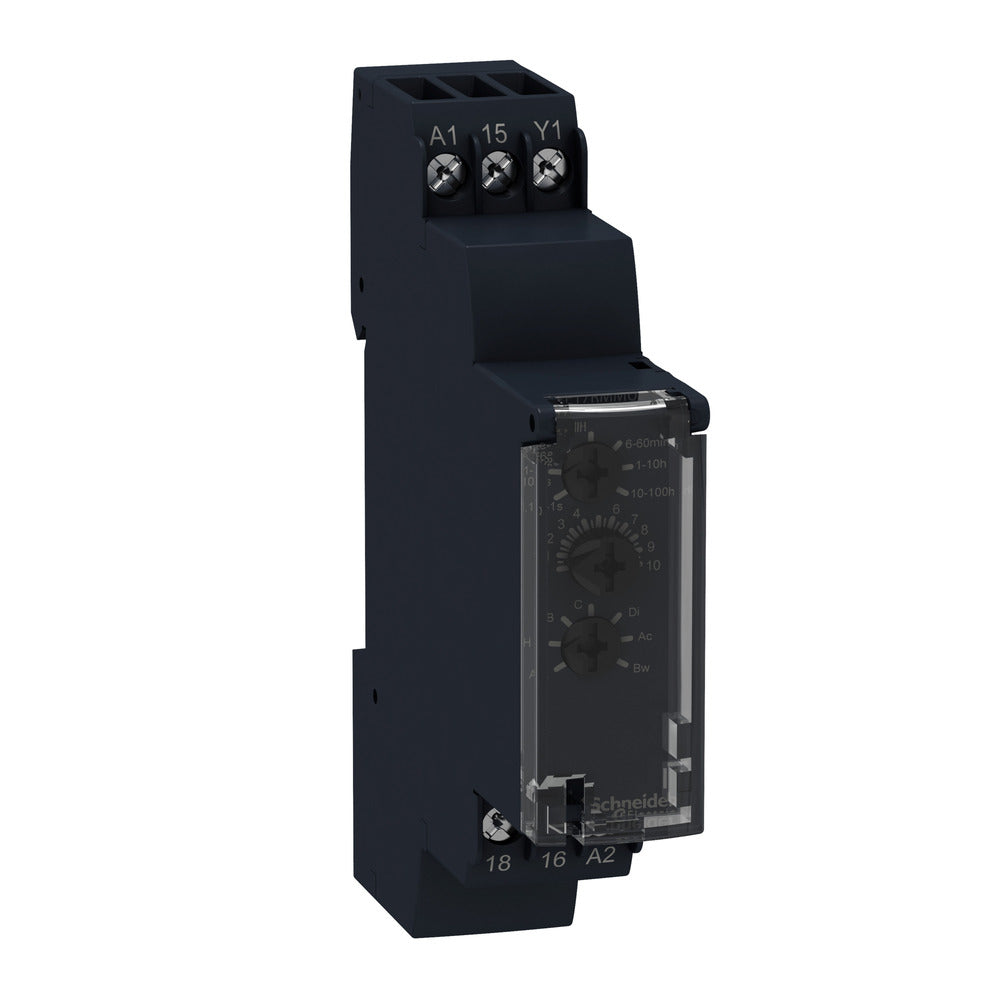

Schneider Electric RE17RMMU Multifunction Time Relay - RE17RMMU

Schneider Electric RE17RMMU Multifunction Time Relay - RE17RMMU
Schneider Electric RE17RMMU Multifunction Time Relay - RE17RMMU
Reference: E3VX9
Brand: Schneider Electric
Mfr. Part: RE17RMMU

Compact multifunction timing relay with 0.1s-100h range and 8A output capacity. Features SPDT changeover contact, operates on 24V DC or 24-240V AC power supply. The 17.5mm slim design allows flexible DIN rail mounting. Includes lockable transparent cover and precise adjustment knob. Ideal for building automation, access control, and industrial process timing applications.

View all
$54.91 USD
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 38 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 5 - 6 business days

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

Compact multifunction timing relay with 0.1s-100h range and 8A output capacity. Features SPDT changeover contact, operates on 24V DC or 24-240V AC power supply. The 17.5mm slim design allows flexible DIN rail mounting. Includes lockable transparent cover and precise adjustment knob. Ideal for building automation, access control, and industrial process timing applications.

Pros:

  • Wide timing range from 0.1 seconds to 100 hours
  • Versatile 24V DC/24-240V AC power supply options
  • Compact 17.5mm width saves DIN rail space
  • 10 timing functions with lockable settings

Specifications

Electrical connectioni
Screw connection
Function delay-on energization
Yes
Function delay on de-energization
Yes
Function floating contact on energization
Yes
Function floating contact on de-energization
Yes
Function star-delta
No
Function pulse shaping
Yes
Function flashing, starting with pause, fixed time
Yes
Function flashing, starting with pulse, fixed time
Yes
Clock function, starting with pause, variable
Yes
Clock function, starting with pulse, variable
Yes
Remote operation possible
No
Suitable as remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage Us at AC 50HZ
24..240 V
Rated control supply voltage Us at AC 60HZ
24..240 V
Rated control supply voltage Us at DC
24..24 V
Voltage type for actuating
AC/DC
Nominal current
8 A
Time range
0.1..360000 s
