Schneider Electric RE17LAMW Time Delay Relay 24-240V AC/DC - RE17LAMW

Schneider Electric RE17LAMW Time Delay Relay 24-240V AC/DC - RE17LAMW
Schneider Electric RE17LAMW Time Delay Relay 24-240V AC/DC - RE17LAMW
Reference: E3UCW
Brand: Schneider Electric
Mfr. Part: RE17LAMW

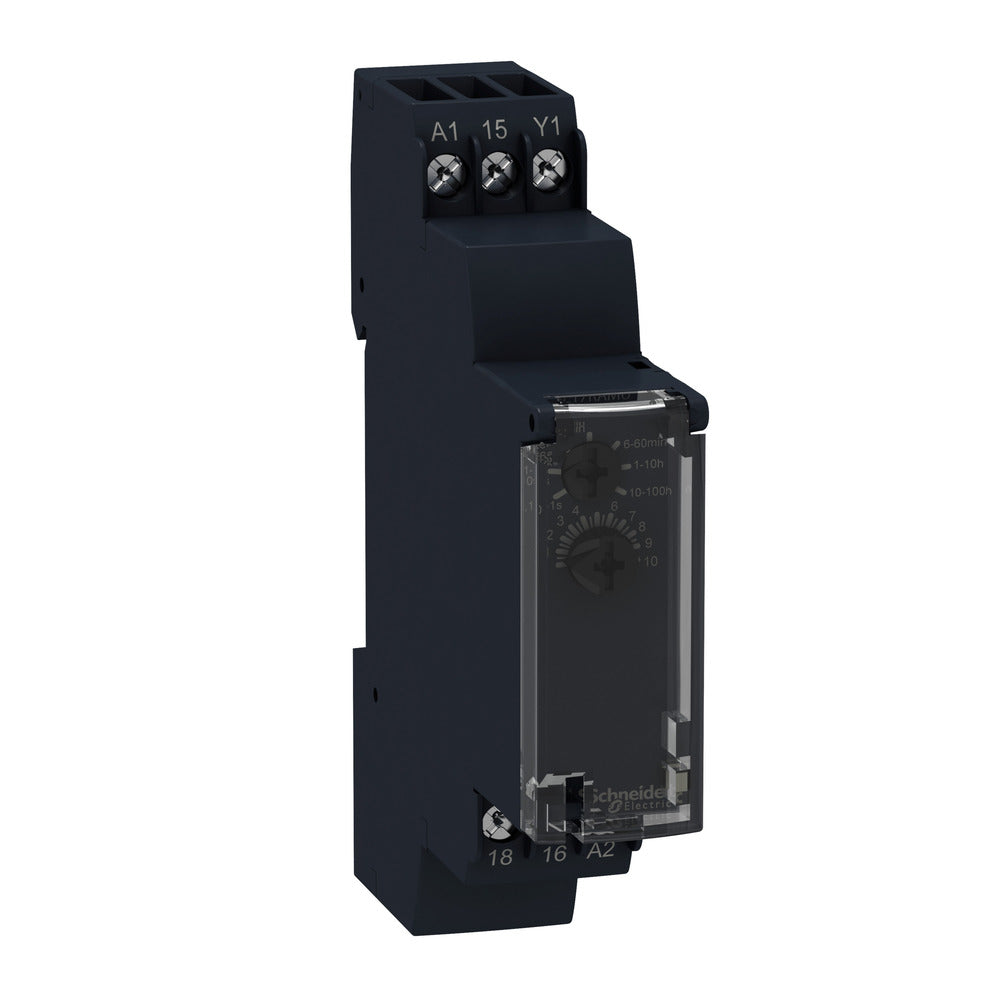

The Zelio RE17L time delay relay offers adjustable timing from 0.1 seconds to 100 hours with 0.7A output capacity. Operating on 24-240V AC/DC power, it features dual DPDT contacts in a compact 17.5mm DIN-rail mount design. The device includes a lockable cover and precise adjustment dial, matching the width of a single-pole circuit breaker for simplified panel design.

View all
$48.47 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 36 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

The Zelio RE17L time delay relay offers adjustable timing from 0.1 seconds to 100 hours with 0.7A output capacity. Operating on 24-240V AC/DC power, it features dual DPDT contacts in a compact 17.5mm DIN-rail mount design. The device includes a lockable cover and precise adjustment dial, matching the width of a single-pole circuit breaker for simplified panel design.

Pros:

  • Wide timing range from 0.1s to 100h
  • Universal power supply 24-240V AC/DC compatibility
  • Compact 17.5mm width saves panel space
  • Includes lockable cover for setting protection

Specifications

Electrical connectioni
Screw connection
Function delay-on energization
Yes
Function delay on de-energization
No
Function floating contact on energization
No
Function floating contact on de-energization
No
Function star-delta
No
Function pulse shaping
No
Function flashing, starting with pause, fixed time
No
Function flashing, starting with pulse, fixed time
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
Remote operation possible
No
Suitable as remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage Us at AC 50HZ
24..240 V
Rated control supply voltage Us at AC 60HZ
24..240 V
Rated control supply voltage Us at DC (V)
24 V to 240 V
Voltage type for actuating
AC/DC
Time range (s)
0.1 s to 360000 s
Number of outputs, undelayed, normally closed contact
0
