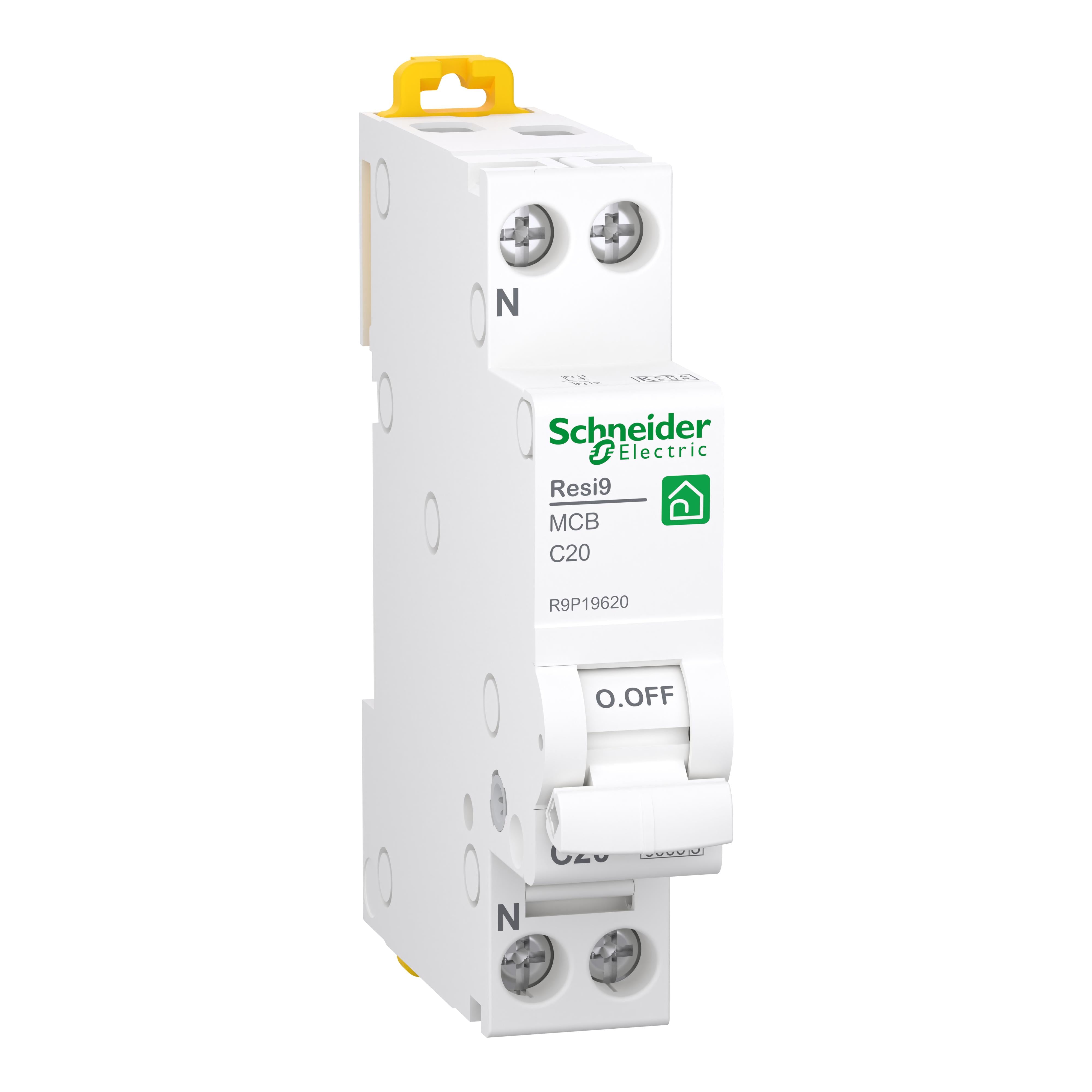

Schneider Electric Merlin Gerin Circuit Breaker - R9P19620

Schneider Electric Merlin Gerin Circuit Breaker - R9P19620
Schneider Electric Merlin Gerin Circuit Breaker - R9P19620
Image may vary slightly
See specifications for accurate information.
Reference: E27D4
Brand: Schneider Electric
Mfr. Part: R9P19620

This Resi9 series circuit breaker from Schneider Electric features 2 poles, 1 of which is protected (1p+n). In addition, the circuit breaker has a rated voltage of 230V, a rated current of 20A and a tripping characteristic C. The short-circuit breaking capacity is 6kA. Furthermore, the Schneider Electric Resi9 circuit breaker has a mounting depth of 44mm.

View all
$19.55 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 11 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Related products

Description

This Resi9 series circuit breaker from Schneider Electric features 2 poles, 1 of which is protected (1p+n). In addition, the circuit breaker has a rated voltage of 230V, a rated current of 20A and a tripping characteristic C. The short-circuit breaking capacity is 6kA. Furthermore, the Schneider Electric Resi9 circuit breaker has a mounting depth of 44mm.

Specifications

Built-in depth (mm)
44
Release characteristic
C
Number of poles (total)
2
Number of protected poles
1
Rated current (A)
20
Rated voltage (V)
230
Rated insulation voltage Ui (V)
500
Rated impulse withstand voltage Uimp (kV)
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA)
6
Voltage-type
AC
Frequency (Hz)
50 Hz to 60 Hz
Current limiting class
3
Flush-mounted installation
No
Concurrently switching neutral conductor
Yes
Over voltage category
3
Pollution degree
2
Additional equipment possible
No
Width in number of modular spacings
1
Degree of protection (IP)i
IP20
Ambient temperature during operating (°C)
-25 °C to 60 °C
