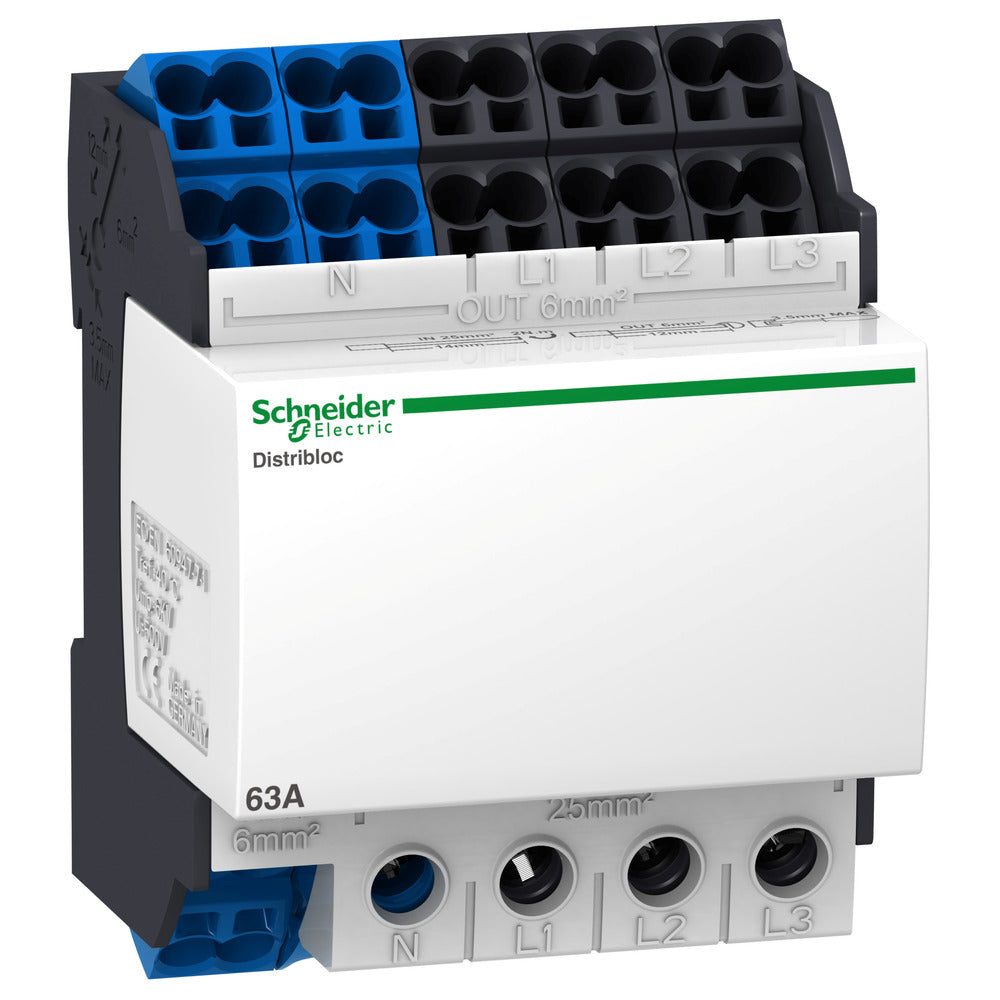

Schneider Electric Linergy DX 63A 4P Distribution Block - LVS04041

Schneider Electric Linergy DX 63A 4P Distribution Block - LVS04041
Schneider Electric Linergy DX 63A 4P Distribution Block - LVS04041
Reference: E3YMT
Brand: Schneider Electric
Mfr. Part: LVS04041

DIN-rail mounted distribution block designed for 4-pole installations, featuring 24 quick-connect holes for bottom connections. Offers 12 phase and 12 neutral spring terminals with cable cross-sections from 2.5mm² to 6mm². Rated for 440V AC operation with 500V AC isolation voltage and 6kV impulse voltage. Compatible with Prisma, PrismaSeT, Pragma, and Spacial enclosures. Rated current: 63A, Width: 4 modules.

View all
$70.37 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Related products

Description

DIN-rail mounted distribution block designed for 4-pole installations, featuring 24 quick-connect holes for bottom connections. Offers 12 phase and 12 neutral spring terminals with cable cross-sections from 2.5mm² to 6mm². Rated for 440V AC operation with 500V AC isolation voltage and 6kV impulse voltage. Compatible with Prisma, PrismaSeT, Pragma, and Spacial enclosures. Rated current: 63A, Width: 4 modules.

Pros:

  • DIN-rail mounting for easy installation
  • 24 quick-connect terminals for efficient wiring
  • Supports flexible and rigid cables up to 25mm²
  • High 960°C glow wire resistance rating

Specifications

Number of poles
4
Nominal current (A)
63
Connection type
Screw-/spring clamp connection
Mounting method
DIN rail
Number of inputs
4
Number of outputs
12
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for fine strand conductors without cable end sleeve
Yes
Suitable for extra fine-strand conductors
Yes
Suitable for extra fine-strand conductors without cable end sleeve
Yes
Conductor cross section, input (mm²)
16 mm² to 25 mm²
Conductor cross section, output (mm²)
2.5 mm² to 6 mm²
Contact safe
Yes
Height (mm)i
96.5
Width (mm)i
72
Depth (mm)i
62
