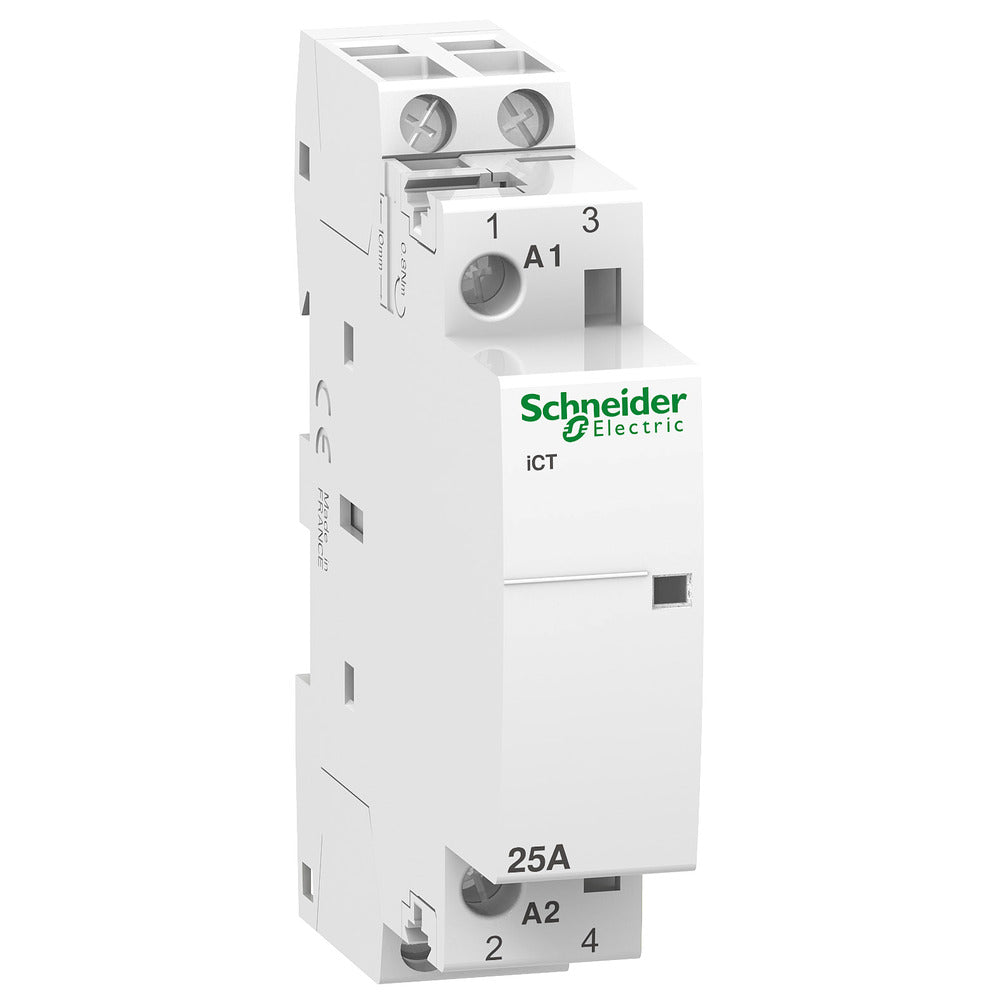

Schneider Electric ICT 25A 2NO 24V AC Contactor - A9C20132

Schneider Electric ICT 25A 2NO 24V AC Contactor - A9C20132
Schneider Electric ICT 25A 2NO 24V AC Contactor - A9C20132
Reference: E3TQU
Brand: Schneider Electric
Mfr. Part: A9C20132

Modular Acti 9 iCT contactor featuring 2NO contacts with 25A nominal current for AC-7a and 8.5A for AC-7b applications. Operating at 250V AC with 24V AC control voltage, it offers IP20 protection (IP40 in enclosure). Rated for 100,000 cycles in AC-7A/AC-1 applications with maximum switching frequency of 6 operations per minute. DIN rail mountable for HVAC, lighting and small motor control applications.

View all
$51.73 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 61 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

Modular Acti 9 iCT contactor featuring 2NO contacts with 25A nominal current for AC-7a and 8.5A for AC-7b applications. Operating at 250V AC with 24V AC control voltage, it offers IP20 protection (IP40 in enclosure). Rated for 100,000 cycles in AC-7A/AC-1 applications with maximum switching frequency of 6 operations per minute. DIN rail mountable for HVAC, lighting and small motor control applications.

Pros:

  • High durability with 100,000 cycle rating
  • Versatile 2NO contact configuration
  • Easy DIN rail mounting
  • Compatible with all Acti 9 control devices

Specifications

Rated operating voltage
250..250 V
Rated operation current
25 A
Rated excitation voltage
24..24 V
Voltage type (operating voltage)
AC
Voltage type (excitation voltage)
AC
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Max. incandescent lamp load
2850 W
Max. load fluorescent lamp
1200 VA
Max. load fluorescent lamp (Duo circuit)
2400 VA
Max. load fluorescent lamp (parallel compensated)
1200 VA
Slider for hand switch
No
Width in number of modular spacings
2
Built-in depth
43.5 mm
Additional equipment possible
Yes
With day/night function
No
Hum-free
No
Degree of protection (IP)i
IP20
