Schneider Electric Harmony Pendant Pushbutton Box Complete - XACA4913

Schneider Electric Harmony Pendant Pushbutton Box Complete - XACA4913
Schneider Electric Harmony Pendant Pushbutton Box Complete - XACA4913
Image may vary slightly
See specifications for accurate information.
Reference: E2XA6
Brand: Schneider Electric
Mfr. Part: XACA4913

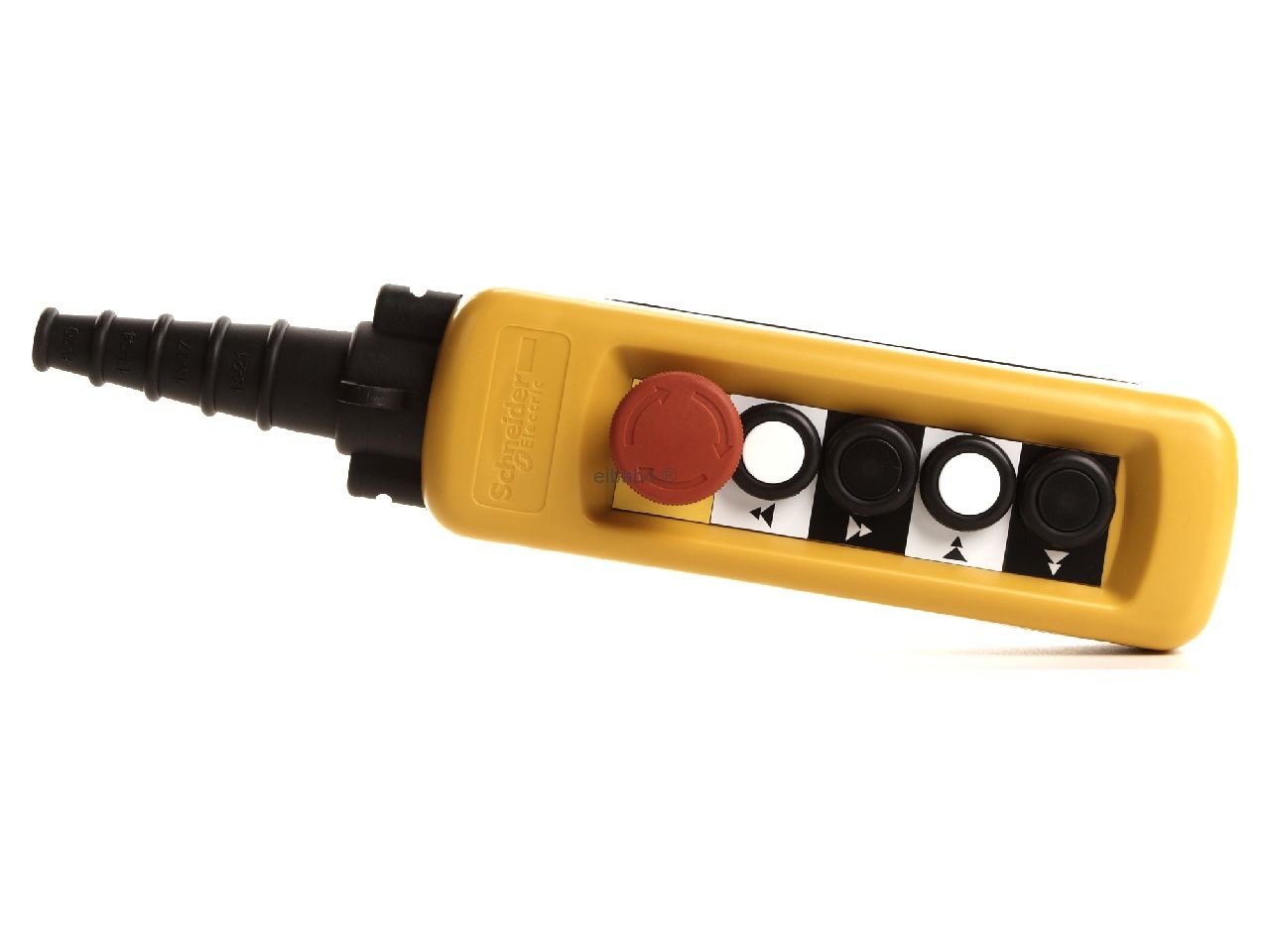

This pendant push button box from Schneider Electric Telemecanique is equipped with 4 push buttons and 1 emergency stop button. This emergency stop provides safety for the driver and surrounding area. In addition, the hoist motor can be controlled at 2 speeds. The pushbutton box can be operated as follows: First pushbutton 1 NC + 2 NO raise, slow-fast. Second pushbutton 1 NC + 2 NO lower, slow-fast. Third pushbutton 1 NC + 2 NO right, slow-fast. Fourth pushbutton 1 NC + 2 NO left, slow-fast. Stop pushbutton ø 40mm 1 NC locking.

View all
$160.80
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 16 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

This pendant push button box from Schneider Electric Telemecanique is equipped with 4 push buttons and 1 emergency stop button. This emergency stop provides safety for the driver and surrounding area. In addition, the hoist motor can be controlled at 2 speeds. The pushbutton box can be operated as follows: First pushbutton 1 NC + 2 NO raise, slow-fast. Second pushbutton 1 NC + 2 NO lower, slow-fast. Third pushbutton 1 NC + 2 NO right, slow-fast. Fourth pushbutton 1 NC + 2 NO left, slow-fast. Stop pushbutton ø 40mm 1 NC locking.

Downloads

Specifications

Number of command positions
4
Rated operation current Ie at AC-15, 600 V (A)
1.2
Number of speeds
2
Suitable for emergency stop
Yes
Type of executable motions
Transport - hoist
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Housing material quality
Other
Colour housing cover
Yellow
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP65
Degree of protection (NEMA)
13
Width (mm)
The product's width without packaging.
80
Height (mm)
The product's height without packaging.
250
Depth (mm)
The product's depth without packaging.
107
