Schneider Electric Ground Fault Circuit Interrupter - A9R05491
Notice: This product will be discontinued in the future
Schneider Electric earth leakage circuit breaker 3, type leakage current A, selective protection, nom. (measuring) current 100A, DIN rail, rated fault current 300A, nom. (measuring) voltage 400V, short-circuit resistance (Icw) 1.5kA, momentary delay type, connectable conductor cross-section duck 1 - 35mm², width in module units 4.
Notice: This product will be discontinued in the future
Description

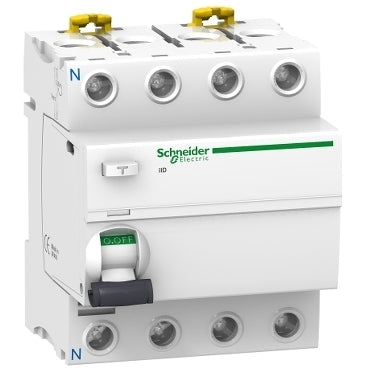

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with a rated current of 100A, a sensitivity of 300mA, and an A type protection class. This product provides protection against electrical shock through indirect contact and minimizes fire hazards.
It disconnects electrical circuits in case of an earth fault. Its unique Visitrip indicator reduces intervention time by indicating the faulty device with a mechanical indicator on the front face. This product also features a VisiSafe window with a green strip on the toggle, which indicates the full opening of the poles and facilitates downstream maintenance.
This product complies with the EN/IEC 61008-1 standard. The rated breaking and making short circuit capacity is 1500A. The conditional rated short circuit current is 10kA. The mechanical endurance can reach up to 20000 cycles, while the electrical endurance can extend up to 10000 cycles.
The operational voltage is between 380VAC to 415VAC. The rated insulation voltage is 500VAC. The rated impulse withstand voltage is 6kV. The frequency can be either 50Hz or 60Hz. The product is mountable on a DIN rail. Its width in 9mm pitches is 8.
The colour of the product is white (RAL9003), and its dimensions are 72mm (W) x 91mm (H) x 73.5mm (D). The product weighs 0.37kg. It has an IP20 degree of protection (as per the IEC/EN 60529 standard), which upgrades to IP40 once it is installed in a modular enclosure.
The operating temperature ranges from -25°C to 60°C. The storage temperature ranges from -40°C to 85°C.
