Schneider Electric Flush-Mounting Switch Modular - A9S65440
Schneider Electric flush-mounting switch modular, nom. (measuring) current 40A, switching function off switch, 4 make contacts, 4 poles, degree of protection (IP) IP20, width in module units 4, forced separation (according to DIN VD, installation depth 75.5mm, cap (calotte) white, short-circuit resistance (Icw) 1.26kA.
- Regular price
- $30.86 USD
Description

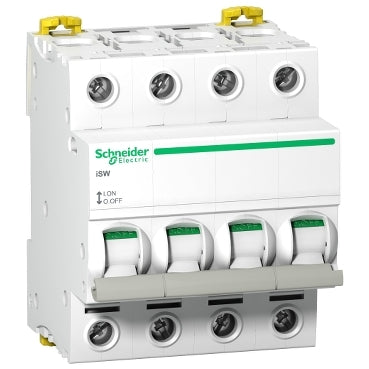

The Acti 9 iSW is a modular and reliable load breaker. This product is a 4P circuit breaker with a nominal current of 40A and an operating voltage of 415V AC. The electrical durability is guaranteed up to 15,000 cycles, and the mechanical durability even up to 20,000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C.
The degree of protection is IP20 and becomes IP40 when this product is placed in a casing. It is easy to mount on a DIN rail. The width in the number of 9mm modules is 8. The dimensions are 85mm (H) x 72mm (W) x 73mm (D). This circuit breaker is used for control and insulation. This product complies with EN/IEC 60947-3.
